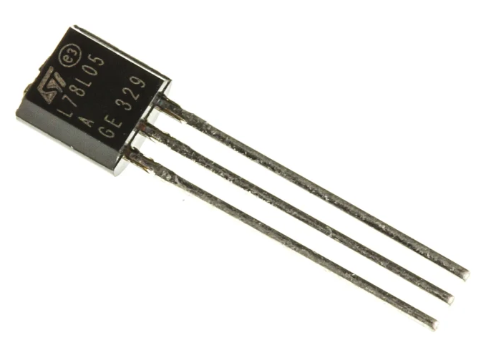

L78L05ACZ TO92 ST 5V IC Voltage regulator 7805 78l05 100MA L78L05ACZ

Product Overview:
A three-terminal positive linear voltage regulator integrated circuit designed to deliver a fixed 5 V output with up to 100 mA of load current for low-power applications.

Core Specifications:
* Manufacturer: STMicroelectronics
* Package Type: TO-92 (Through-Hole)
* Output Voltage: 5 V (Fixed)
* Output Current Capability: Up to 100 mA
* Maximum Input Voltage: 30 V
* Operating Junction Temperature: 0°C to 125°C
* Protection Features: Internal thermal overload protection and short-circuit current limiting
