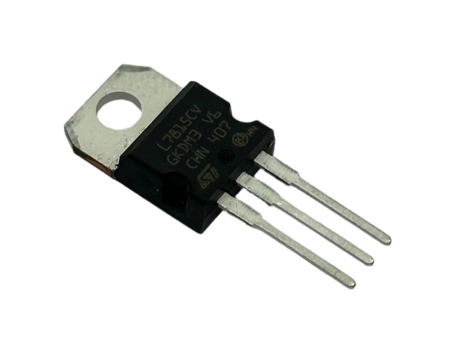

L7815 IC Voltage Regulator L7815

Product Overview

The L7815 is a three-terminal positive voltage regulator from the L78 series. It is designed to provide a fixed output voltage of 15V. These regulators provide local on-card regulation, effectively eliminating the distribution problems associated with single-point regulation. Each device features internal current limiting, thermal shutdown, and safe area protection, making it highly robust in various applications.

Core Specifications

• Manufacturer: STMicroelectronics

• Function: Positive Voltage Regulator

• Fixed Output Voltage: 15 V

• Max Output Current: Up to 1.5 A

• Protection Features: Thermal overload protection, short circuit protection, and output transition SOA protection

• Output Voltage Tolerance: 2% (for A version)

• Package Types: TO-220, TO-220FP, D2PAK, DPAK
