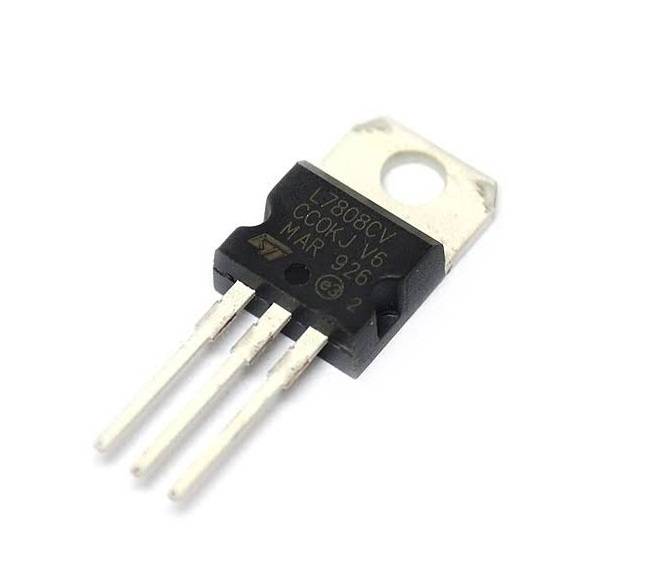

L7808CV IC ST TO220 VOLTAGE REGULATOR L7808CV

Product Overview

The L7808CV is a specific fixed-output, positive voltage regulator within the L78 series. It is designed to provide a steady 8V output from a higher unregulated DC input voltage. Like the rest of the L78 series, it features robust internal protection including current limiting, thermal shutdown, and safe operating area (SOA) protection, rendering it highly reliable for powering sensitive electronic circuits. The "CV" designation typically refers to the TO-220 package type, which allows for efficient heatsinking in demanding applications.

Core Specifications

• Manufacturer: STMicroelectronics

• Package Type: TO-220 (Through-hole with thermal tab)

• Function: Fixed-output 8V Positive Voltage Regulator

• Input Voltage: Supports input voltages typically ranging from 10.5V to 25V (to maintain a regulated 8V output)

• Control Interface: Three-terminal configuration (Input, Common/Ground, Output); output is fixed at 8V by internal circuitry.
