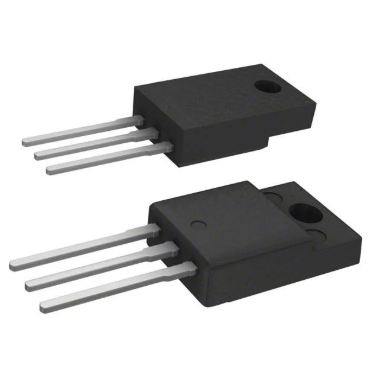

L7806CP IC TO220FP ST VOLTAGE REGULATOR L7806CP

Product Overview

The L7806CP is a fixed-output, positive voltage regulator designed to provide a stable 6V output from a higher unregulated DC source. It is part of the industry-standard L78 series, engineered for local on-card regulation to eliminate the noise and distribution issues inherent in single-point power systems. The device integrates robust self-protection features, including thermal overload shutdown, internal current limiting, and safe operating area (SOA) protection, ensuring it remains operational under standard fault conditions.

Core Specifications

• Manufacturer: STMicroelectronics

• Package Type: TO-220 (Power-tab package for efficient thermal management)

• Function: Fixed-output 6V Positive Voltage Regulator

• Input Voltage: Recommended input range typically between 8V and 25V to maintain a stable 6V regulated output

• Control Interface: Three-terminal configuration (Input, Common/Ground, Output); output voltage is fixed by internal laser-trimmed circuitry.
