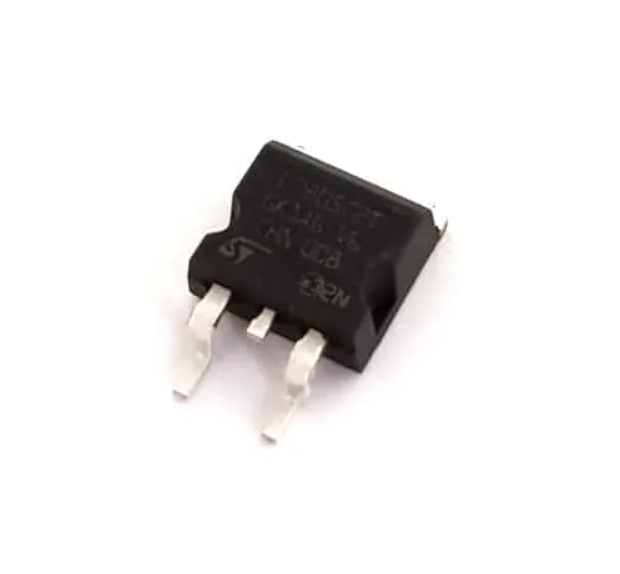

L7805CD2T SMD IC voltage regulator 7805 D2PACK 5V 1.5A L7805CD2T-TR

Product Overview:

A three-terminal positive voltage regulator integrated circuit designed for local on-card regulation, eliminating the distribution problems associated with single-point regulation in electronic systems.

Core Specifications:

Manufacturer: STMicroelectronics

Package Type: Available in TO-220, TO-220FP, D2PAK, and DPAK packages

Function: Positive Voltage Regulator

Output Current: Up to 1.5 A

Output Voltages: Fixed output voltages of 5V, 6V, 8V, 8.5V, 9V, 12V, 15V, 18V, and 24V

Features:

• Internal thermal overload protection

• Short-circuit current limiting protection

• Output transition Safe Operating Area (SOA) protection

• 2% output voltage tolerance (A version)

• Guaranteed performance in the extended temperature range

Applications:

• Local on-card voltage regulation

• Power supply circuits for consumer and industrial electronics

• Voltage stabilization in high-fidelity audio and automotive systems
