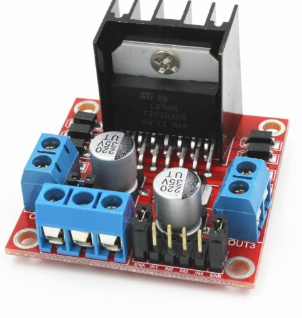

L298N IC Dual H-Bridge Motor Driver 298N

Product Overview

The L298N is a high-voltage, high-current dual full-bridge driver designed to control inductive loads such as DC motors, stepping motors, relays, and solenoids. It acts as an integrated monolithic circuit that accepts standard TTL logic levels to drive these loads independently.

Core Specifications

• Operating Voltage: Supports supply voltages up to 46 V.

• Current Capacity: Capable of handling a total DC current of up to 4 A.

• Control Features:

  • Includes two independent enable inputs to control each bridge separately.

  • Features internal overtemperature protection.

  • Provides high noise immunity with logical "0" input voltage up to 1.5 V.

• Packaging: Available in 15-lead Multiwatt and PowerSO20 packages.
