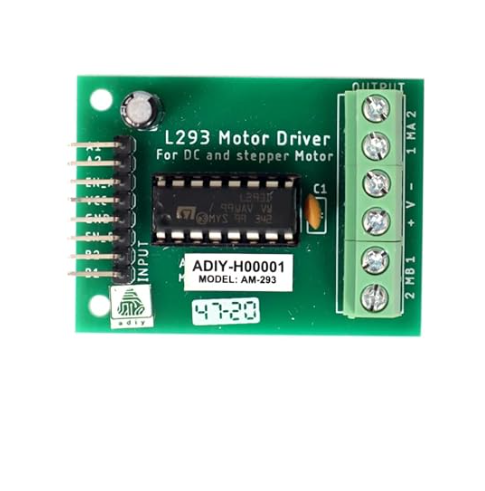

L293 Motor Driver Module Board For Arduino- Dual H-Bridge for DC and Stepper Motors for Arduino by ADIY- L293D Motor Driver Module NH45881

Product Overview:

A dual H-bridge motor driver module based on the L293D integrated circuit, designed to control the speed and direction of DC and stepper motors via microcontrollers like Arduino.

Core Specifications:

• Manufacturer / Brand: ADIY

• Base IC: L293D

• Motor/Logic Supply Voltage ($V_{ss}$): 5 VDC to 36 VDC

• Logic Control Input Voltage ($V_{in}$): 7 VDC maximum

• Output Current Capability: Up to 600 mA per channel

• Protection Features: Over-temperature thermal shutdown, high noise immunity

• Control Interface: Enable/inhibit pins, control lines accessible via Berg connectors

• Connection Types: Header connectors for motor and power supply lines

• PCB Dimensions: 36 mm x 24 mm
