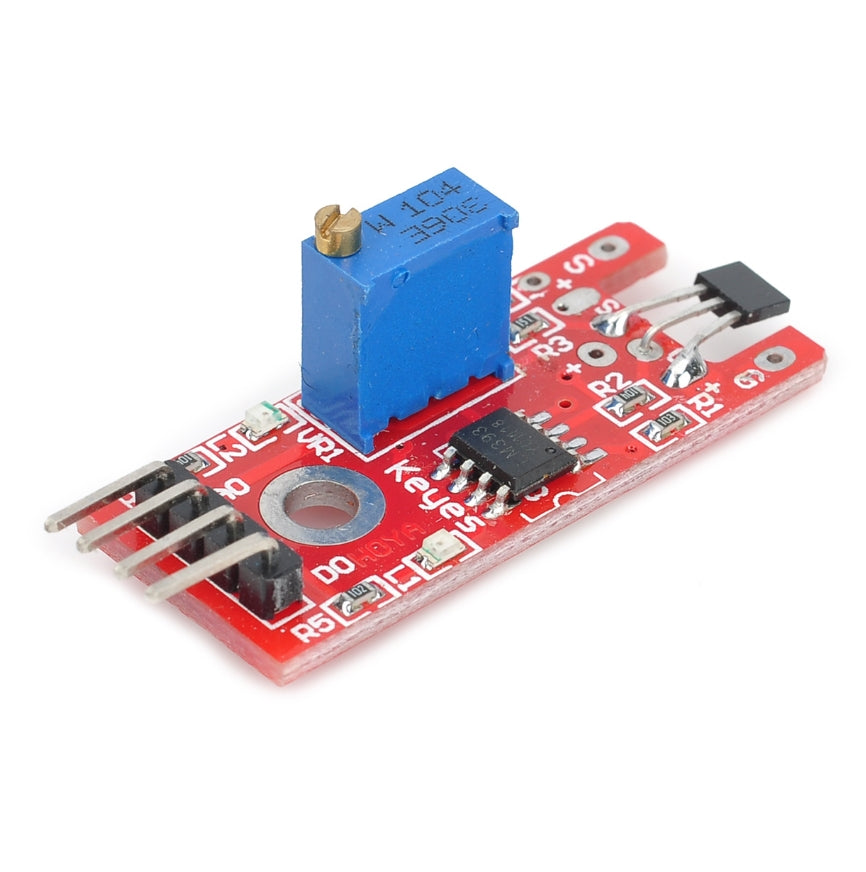

KY-024 Linear Magnetic Hall Sensor Module Switch Speed Counting Module KY-024
KY-024 Linear Magnetic Hall Sensor Module Switch Speed Counting Module KY-024
SKU:KY-024
Regular price
Rs. 49.00
Regular price
Sale price
Rs. 49.00
Shipping calculated at checkout.
100 in stock
Quantity
Couldn't load pickup availability
Model
Linear magnetic hall sensor
Function
The magnetic field is measured by the sensor and transmitted as an analog voltage value whereby the sensitivity of the sensor can be controlled via potentiometer
Chipset
LM393 & 49E
Digital output
If a magnetic field is detected, a signal is given here
Analog output
Direct measured value of the sensor unit
Operating voltage
3V - 5 V
Logic level
3.3 V / 5V
Compatible with
Arduino, Raspberry Pi (mwth ADC), etc.
Special features
Analog and digital signal output, potentiometer to adjust the digital output
