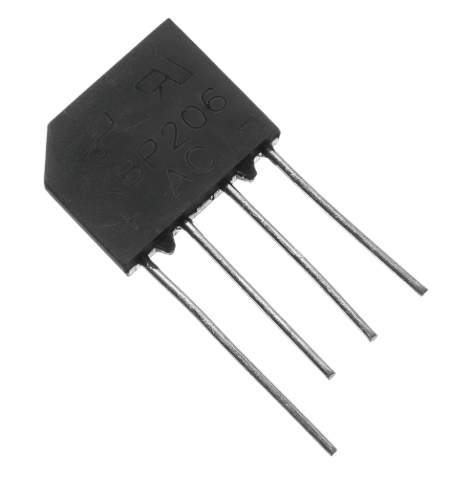

KBP206 SEP RECTIFIER BRIDGE 2A 600V DIODE KBP-206

Product Overview

1. The KBP206 is a single-phase bridge rectifier housed in a low-profile, glass-passivated KBP package optimized for printed circuit board placement.

2. This specific model features a maximum repetitive peak reverse voltage and maximum DC blocking voltage rating of exactly 600 V.

3. It supports a rated average rectified output current of 2.0 A under a 60Hz sine wave load at case temperatures up to 122°C.

4. The component withstands a non-repetitive peak forward surge current of 60 A and exhibits a low maximum forward voltage drop of 1.0 V per diode.
