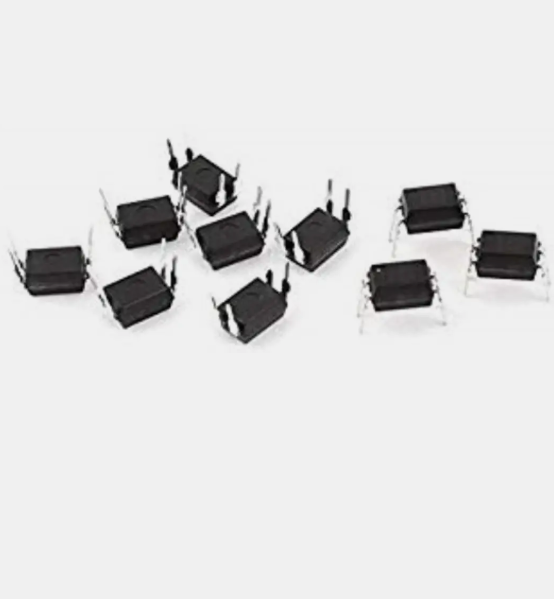

K1010 817 COSMO IC DIP4 Opto Coupler K1010 817 COSMO

Product Overview: A dual-in-line photocoupler designed for signal transmission and isolation between circuits of different potentials.

Core Specifications:

• Manufacturer: Cosmo Electronics Corporation

• Component Type: Photocoupler

• Package Type: 4-Pin Dual-In-Line Package (DIP)

• Isolation Voltage (Viso): 5000 Vrms

• Current Transfer Ratio (CTR): Minimum 50% (at IF=5mA, Vce=5V)

• Forward Current (IF): 50 mA maximum

• Collector-Emitter Voltage (VCEO): 60 V maximum

• Total Power Dissipation: 200 mW maximum

• Regulatory Approvals: UL 1577, VDE 0884/0860/0805
