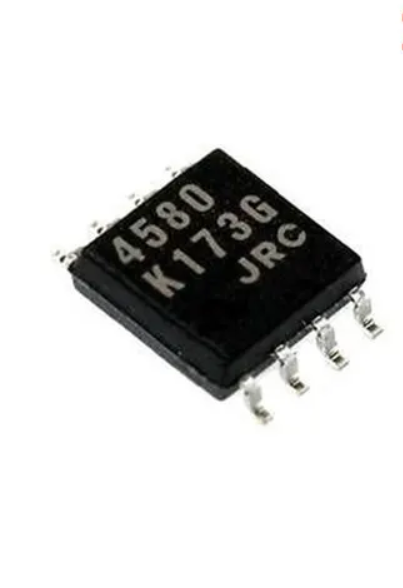

JRC4580 SMD IC SOP8 4580 AMP JRC4580-SOP-8

Product Overview:

A surface-mount, dual-channel operational amplifier integrated circuit specifically engineered for high-fidelity audio applications. It is optimized to provide low noise, high gain bandwidth, and high output current capability, making it an excellent choice for audio pre-amplifiers, active filters, and headphone amplifier circuits.

Core Specifications:

Manufacturer: Hanschip Semiconductor (JRC series)

Package Type: Available in DIP-8, SOP-8, DFN-8 (3x3), and MSOP-8

Function: Dual Operational Amplifier

Input Channels: N/A (Analog Component)

Control Interface: N/A (Analog/Feedback-controlled)

Features:

• Operating Voltage Range: ±2V to ±16V

• Low Input Noise Voltage: 0.8 µVrms (typical)

• Wide Gain Bandwidth Product: 15 MHz (typical)

• Low Distortion: 0.0005% (typical)

• High Slew Rate: 5 V/µs (typical)

• Bipolar Technology optimized for acoustic electronics

Applications:

• Audio pre-amplifier stages and tone control circuits

• Active filter design

• Headphone amplifier drivers

• Industrial measurement instrumentation

• General-purpose low-voltage, single-supply audio signal processing
