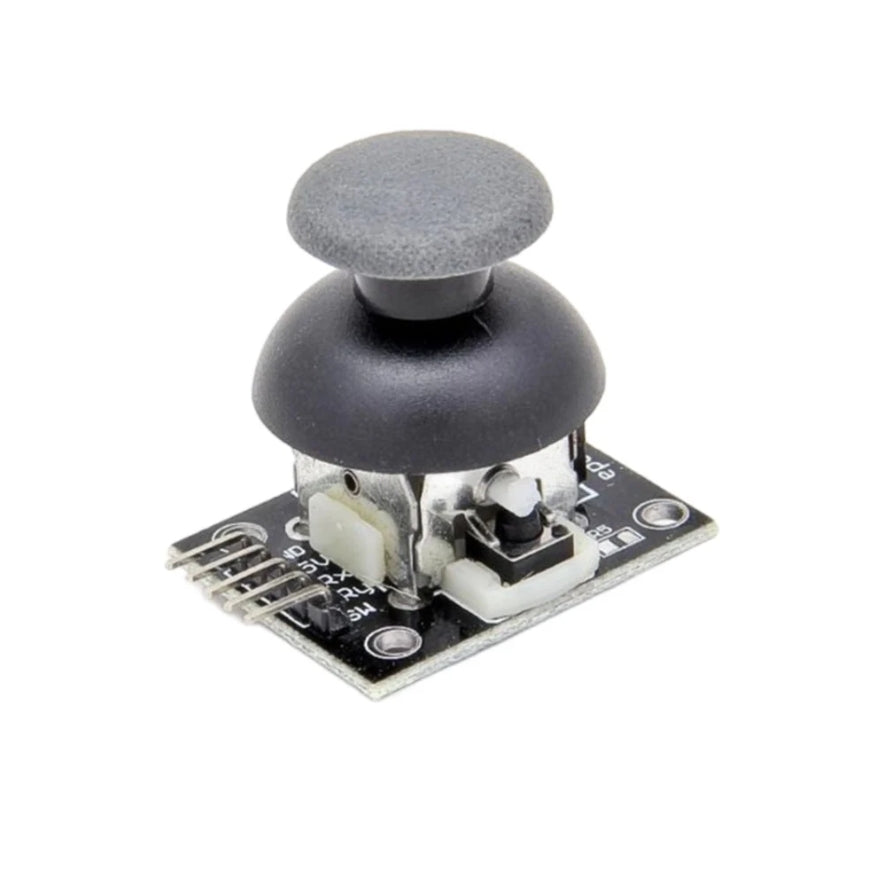

JoyStick Module PS2 Breakout Sensor JM-PS2

Product Overview

The module featured in the file "PS2-Joystick.pdf" is a thumb-operated PS2-style dual-axis joystick module. It operates on the principle of variable resistance, using two internal $10\text{ k}\Omega$ potentiometers to convert directional movement into analog voltage changes alongside an integrated push button switch. The board features a moving joystick knob that sits at a neutral center position yielding approximately 2.5V, swinging dynamically from 0V to 5V along the X and Y axes depending on the physical direction it is pushed. It is highly popular in DIY electronics, robotics, and microcontroller projects for building interactive game controllers, navigating menus, and driving precise pan-tilt camera systems or motorized mechanisms.
