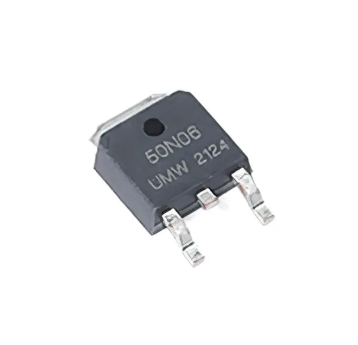

JMTK50N06B SMD MOSFET N-Channel TO252 60V 50A Jiangsu JieJie Microelectronics JMTK50N06B

Product Overview

A surface-mount N-Channel enhancement mode power MOSFET designed using advanced trench technology to deliver low on-resistance ($R_{DS(on)}$) and exceptionally low gate charge. Housed in a robust TO-252 (DPAK) package, this device balances high current handling capabilities with efficient heat dissipation. It is ideally suited for power management, PWM applications, high-speed load switching, motor drives, and DC-DC power converters in consumer or industrial electronics.

Core Specifications

• Manufacturer: Jiangsu JieJie Microelectronics (JJM)

• Package Type: TO-252 (DPAK)

• Function: SMD MOSFET (N-Channel)

• Voltage Rating: 60V

• Current Rating: 50A

• Power Dissipation: 75W (maximum at $T_C = 25^\circ C$)

• Static On-Resistance ($R_{DS(on)}$): < 15 mΩ (typical ~13.7 mΩ @ $V_{GS}$ = 10V)

• Marking Code: JMTK50N06B

• Part Number: JMTK50N06B
