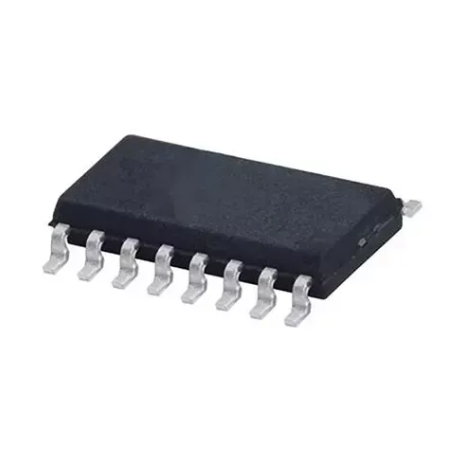

IW4053BD SMD IC IK SEMI SOIC16 NEXPERIA 4053 CD4053 IW4053BD

Product Overview:

A surface-mount triple 2-channel analog multiplexer/demultiplexer integrated circuit, configured for high-voltage signal switching in digital and analog applications. It is designed to perform as a digitally-controlled analog switch, ideal for signal routing and data acquisition systems.

Core Specifications:

Manufacturer: IK SEMI

Package Type: SOIC-16

Function: Triple 2-Channel Analog Multiplexer/Demultiplexer

Input Channels: 3 Independent 2-Channel Multiplexers

Control Interface: TTL/CMOS-compatible Logic Inputs (Select pins)

Features:

• Low "ON" resistance (typically 80Ω for $V_{DD} - V_{EE} = 15V$)

• Logic-level conversion for switching 15V signals with 5V logic

• Low crosstalk between channels

• Wide operating voltage range: 3V to 18V

• High noise immunity and low power dissipation

• Break-before-make switching

Applications:

• Analog signal switching and multiplexing

• Signal gating and modulation

• Factory automation and process control

• Data acquisition and telemetry systems

• Audio and video signal routing
