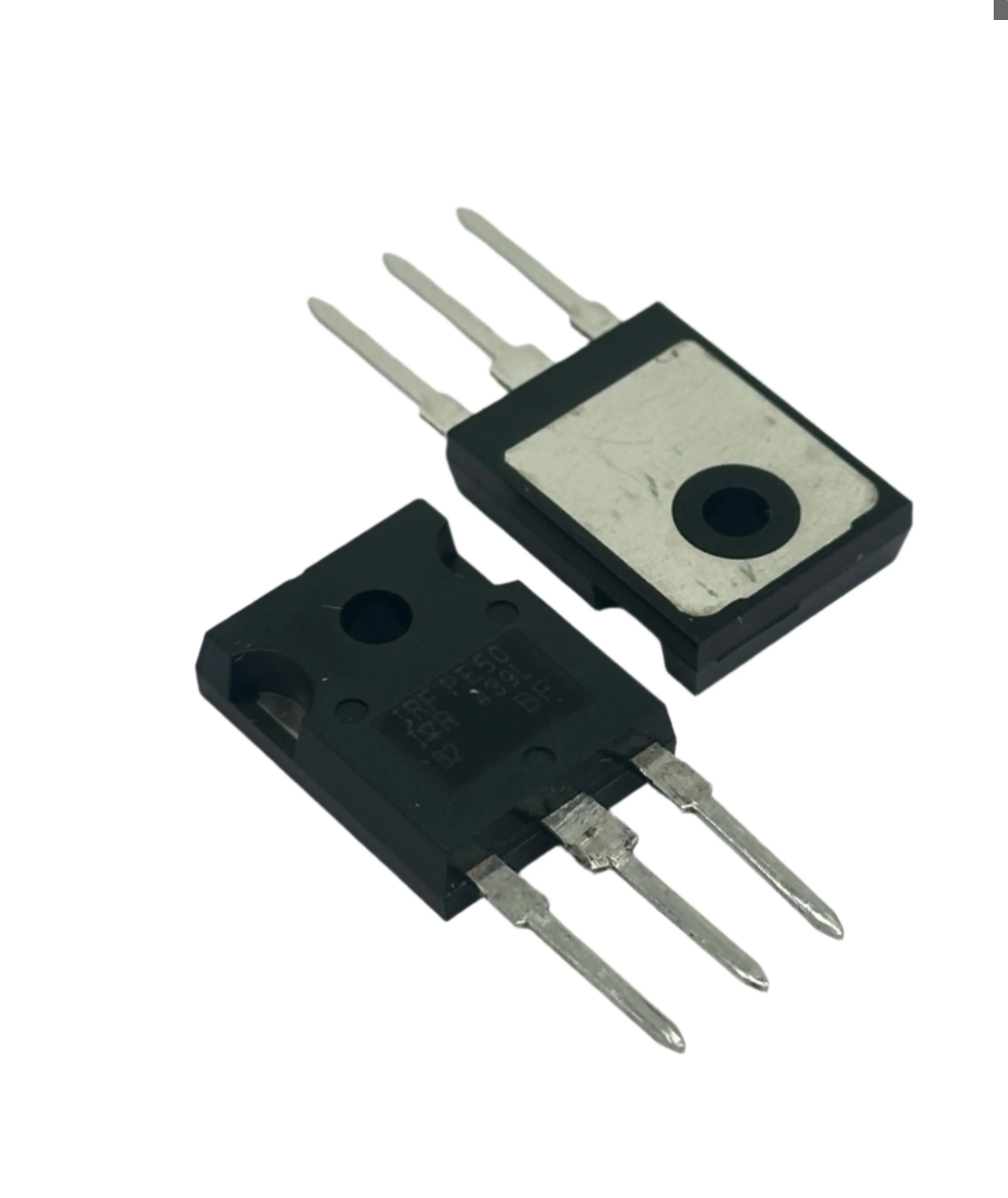

IRFPE50 MOSFET N-CHANNEL 800V 7.8A VISHAY IRFPE50

Product Overview:

A through-hole N-Channel power MOSFET designed for high-voltage, high-speed switching applications. Utilizing advanced planar technology, it provides an excellent combination of fast switching capability, ruggedized device design, and low on-resistance ($R_{DS(on)}$). This device features high avalanche ruggedness and is optimized for demanding high-voltage environments such as off-line switch-mode power supplies (SMPS), electronic lamp ballasts, high-voltage DC-DC converters, and power factor correction (PFC) circuits.

Core Specifications:

Manufacturer: Vishay

Package Type: TO-247AC / TO-247

Function: N-Channel Power MOSFET

Maximum Drain-Source Voltage: 800V

Continuous Drain Current: 7.8A (at 25°C) / 4.9A (at 100°C)

Specific Variant: IRFPE50
