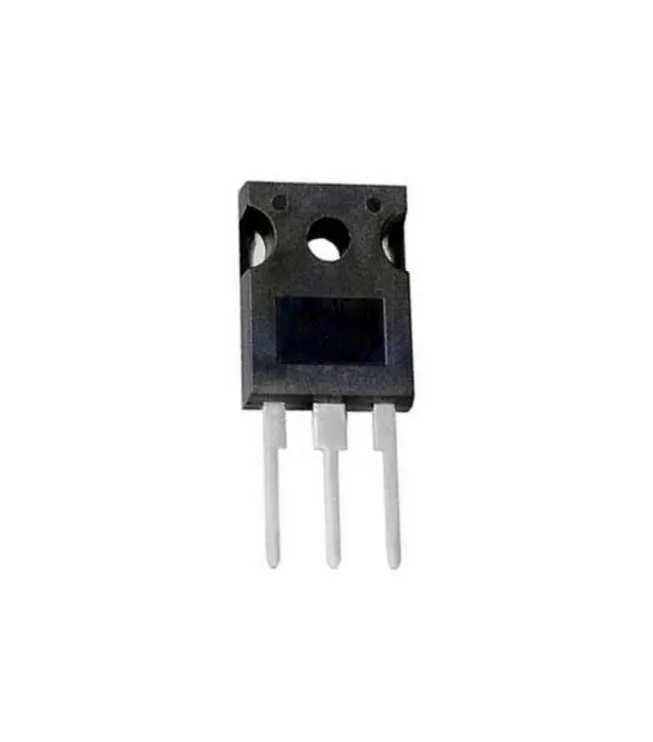

IRFP9240 MOSFET P Channel TO247 200V 12A VISHAY IRFP9240

Product Overview:

A through-hole P-Channel power MOSFET engineered for high-voltage, high-speed switching applications. Utilizing advanced planar technology, this device provides an optimal combination of fast switching capability, ruggedized device design, low on-resistance ($R_{DS(on)}$), and cost-effectiveness. Packaged in a robust TO-247 enclosure, it features greater creepage distances between pins, making it highly preferred for commercial-industrial systems where higher power levels are required. As a P-channel device, it simplifies circuit design by eliminating the need for an isolated gate supply when used as a high-side switch. It is widely utilized in switching regulators, DC-to-DC converters, motor control drivers, and as a complementary pair (often paired with the N-channel IRFP240) in high-fidelity audio power amplifiers.

Core Specifications:

Manufacturer: Vishay

Package Type: TO-247AC / TO-247

Function: P-Channel Power MOSFET

Maximum Drain-Source Voltage: -200V

Continuous Drain Current: -12A (at 25°C) / -7.5A (at 100°C)

Specific Variant: IRFP9240 / IRFP9240PBF
