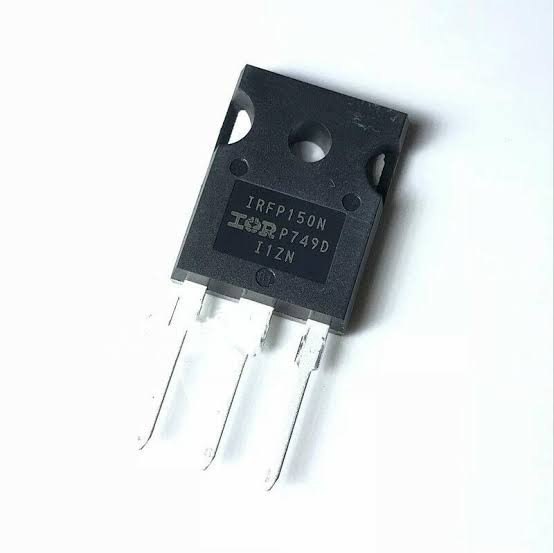

IRFP150N Transistor MFET N-Channel Transistor Infineon IRFP150N

Product Overview

The IRFP150N is a high-performance N-Channel power MOSFET designed for a wide range of industrial and consumer applications. Utilizing advanced trench technology, this device delivers exceptionally low on-resistance ($R_{DS(on)}$), which minimizes conduction losses and improves overall system efficiency. Its robust TO-247 package is engineered for superior heat dissipation, making it ideal for high-current applications such as DC-DC converters, motor controllers, uninterruptible power supplies (UPS), and high-speed switching circuits.

Core Specifications

• Manufacturer: Infineon (formerly International Rectifier)

• Package Type: TO-247AC

• Component Type: N-Channel Power MOSFET

• Drain-Source Voltage ($V_{DS}$): 100V

• Continuous Drain Current ($I_D$): 42A (at $T_C = 25^\circ C$)

• On-Resistance ($R_{DS(on)}$): $0.036\Omega$ (Typical)

• Gate-Source Voltage ($V_{GS}$): ±20V

• Power Dissipation ($P_{tot}$): 160W (at $T_C = 25^\circ C$)

• Threshold Voltage ($V_{GS(th)}$): 2.0V to 4.0V

• Marking Code: IRFP150N

• Part Number: IRFP150NPBF
