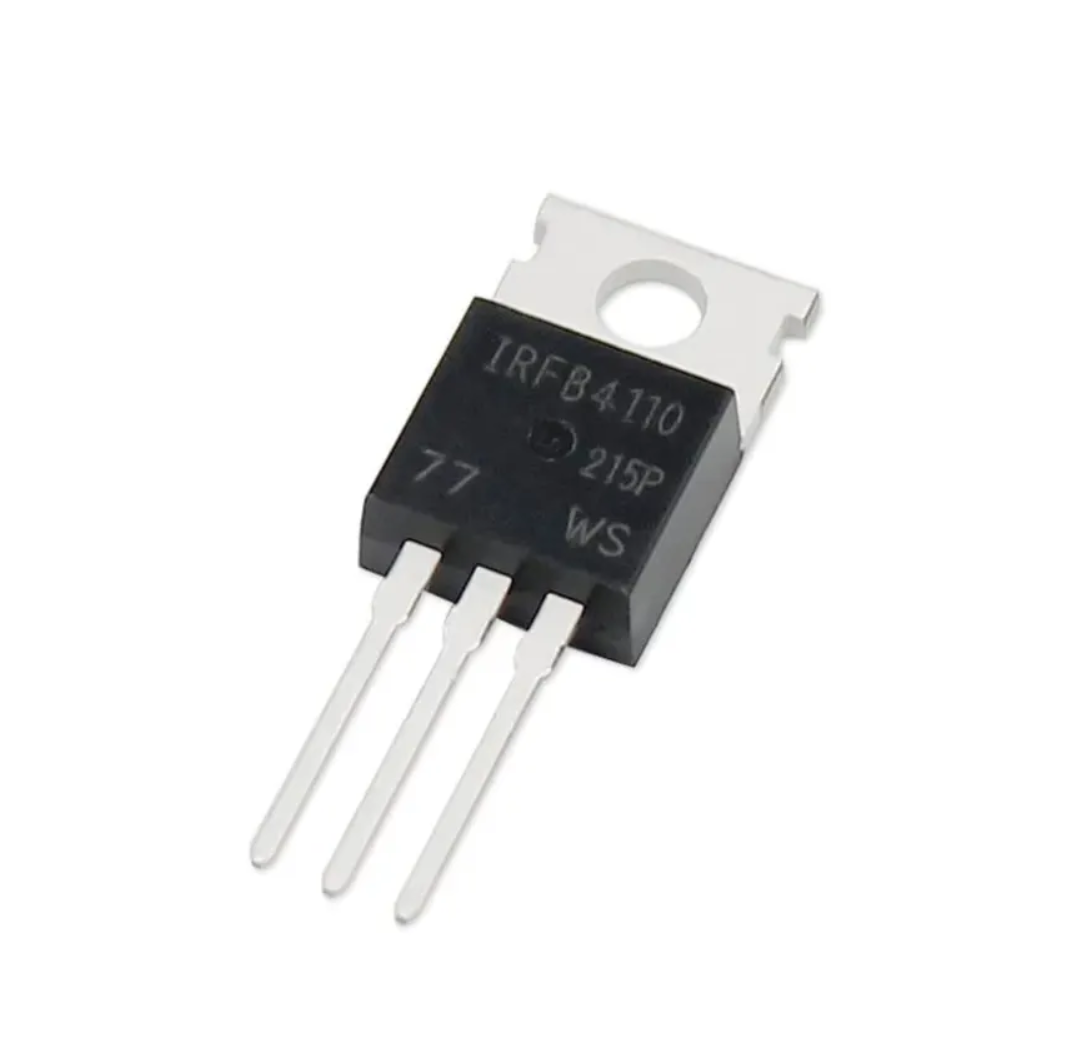

IRFB4110 MOSFET N Channel TO220 100V 180A Infineon IRFB4110

Product Overview: A through-hole N-channel HEXFET power MOSFET designed for high-power, high-current switching applications such as synchronous rectification in high-efficiency switch-mode power supplies (SMPS), motor drives, solar inverters, uninterruptible power supplies (UPS), and battery management systems (BMS) requiring ultra-low on-resistance and high reliability.

Core Specifications:

Manufacturer: Infineon Technologies (originally International Rectifier)

Package Type: TO-220AB (Through-Hole)

Function: N-Channel Power MOSFET

Drain-Source Voltage (Vds): 100V

Continuous Drain Current (Id): 180A (Silicon Limited) / 120A (Package Limited)

On-State Resistance (Rds(on)): 3.7mΩ (Typical) / 4.5mΩ (Maximum)
