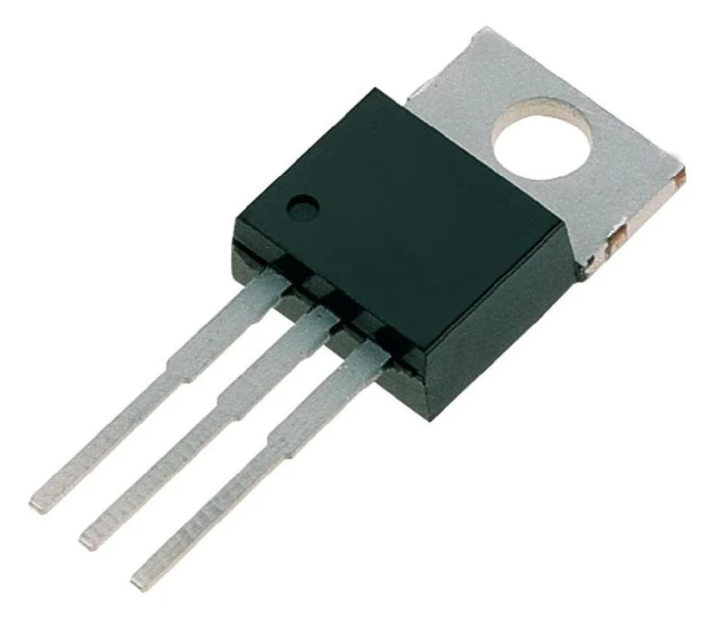

IRF9630 MOSFET P Channel TO-220 200V 6.5A VISHAY IRF9630

Product Overview:

A through-hole P-Channel power MOSFET engineered for high-voltage, high-speed switching applications. Utilizing advanced planar technology, this device provides an excellent combination of fast switching, ruggedized device design, and low on-resistance ($R_{DS(on)}$). As a P-channel device, it simplifies circuit design by eliminating the need for an isolated gate supply when used as a high-side switch. It is commonly utilized in power management systems, motor control drives, audio amplifiers, and high-voltage line switching circuits.

Core Specifications:

Manufacturer: Vishay

Package Type: TO-220AB / TO-220

Function: P-Channel Power MOSFET

Maximum Drain-Source Voltage: -200V

Continuous Drain Current: -6.5A (at 25°C) / -4.0A (at 100°C)

Specific Variant: IRF9630 / IRF9630PBF
