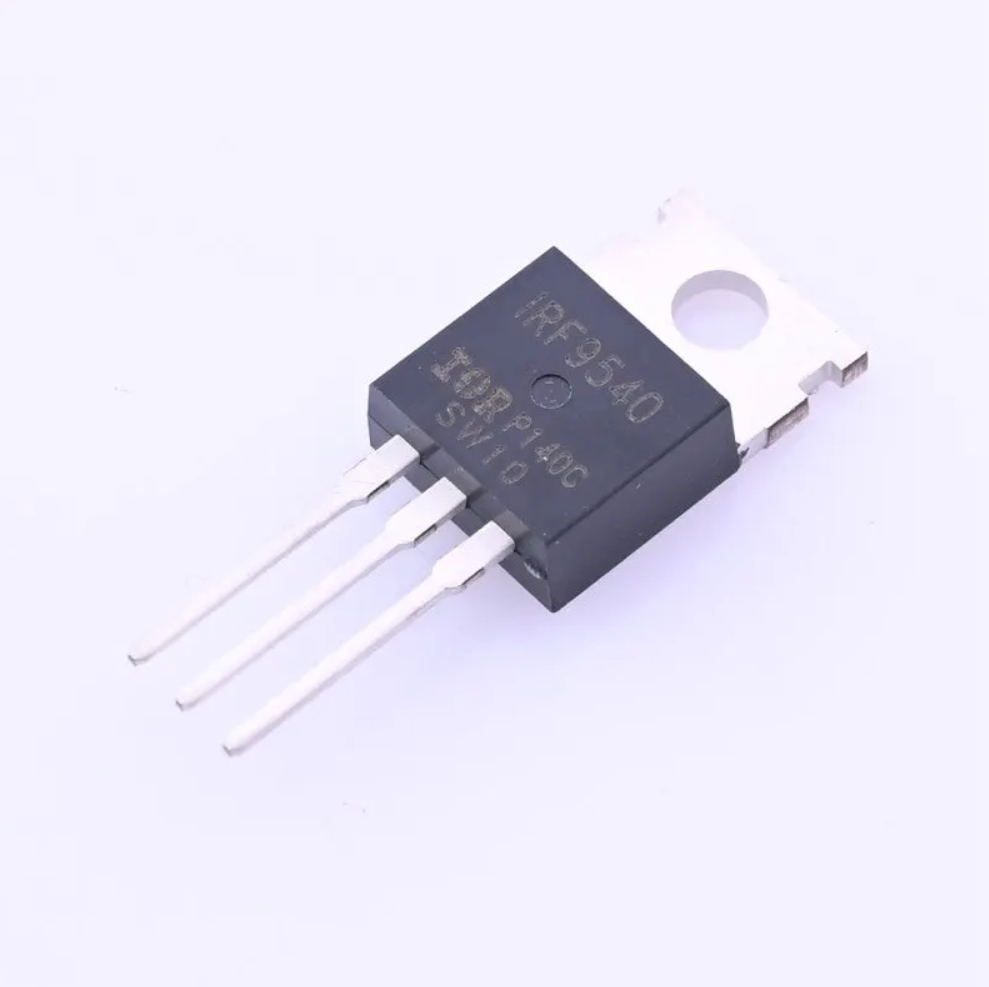

IRF9540NPBF MOSFET P Channel TO220 IR 100V 23A Infineon IRF9540NPBF

Product Overview:

A through-hole P-channel HEXFET power MOSFET designed for high-efficiency switching applications such as switching regulators, motor drivers, uninterruptible power supplies (UPS), battery management systems, and central switching circuits requiring fast switching performance and robust avalanche ruggedness.

Core Specifications:

Manufacturer: Infineon Technologies (originally International Rectifier)

Package Type: TO-220AB (Through-Hole)

Function: P-Channel Power MOSFET

Drain-Source Voltage (Vds): -100V

Continuous Drain Current (Id): -23A

On-State Resistance (Rds(on)): 0.117Ω (117mΩ)
