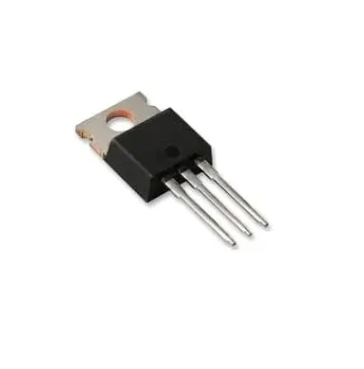

IRF9513 MOSFET P CHANNEL TO220 80V 2.5A Infineon IRF9513

Product Overview:

A through-hole P-Channel HEXFET® Power MOSFET engineered for high-speed switching and power management applications. Utilizing advanced processing technology, this device provides an optimal combination of fast switching capability, ruggedized device design, and a well-characterized on-resistance ($R_{DS(on)}$). As a P-channel device, it simplifies circuit design by eliminating the need for an isolated gate supply when used as a high-side switch. It features high dynamic $dv/dt$ ruggedness and full avalanche characterization, ensuring reliable performance under various electrical stresses. This component is well-suited for low-to-medium power applications, including switching regulators, DC-to-DC converters, motor control drivers, and general-purpose high-side switching circuits.

Core Specifications:

Manufacturer: Infineon (Formerly International Rectifier - IR)

Package Type: TO-220AB / TO-220

Function: P-Channel Power MOSFET

Maximum Drain-Source Voltage: -80V

Continuous Drain Current: -2.5A (at 25°C)

Specific Variant: IRF9513 / IRF9513PBF
