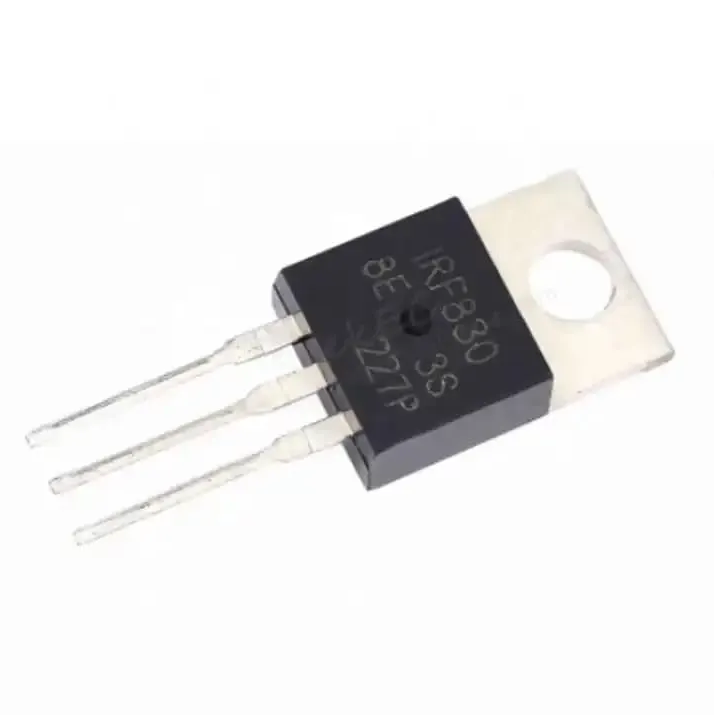

IRF830 MOSFET N CHANNEL TO220 500V 4.5A VISHAY IRF830

Product Overview:

A through-hole N-Channel power MOSFET engineered for high-voltage, high-speed switching applications. Utilizing advanced planar technology, this device provides an optimal combination of fast switching capability, ruggedized device design, low on-resistance ($R_{DS(on)}$), and cost-effectiveness. It features high dynamic $dv/dt$ ruggedness and full avalanche characterization, ensuring reliable performance under demanding electrical conditions. This component is widely utilized in high-voltage power management environments, including switch-mode power supplies (SMPS), electronic lamp ballasts, DC-to-DC converters, and general-purpose high-power switching systems.

Core Specifications:

• Manufacturer: Vishay

• Package Type: TO-220AB / TO-220

• Function: N-Channel Power MOSFET

• Maximum Drain-Source Voltage: 500V

• Continuous Drain Current: 4.5A (at 25°C) / 2.9A (at 100°C)

• Specific Variant: IRF830 / IRF830PBF
