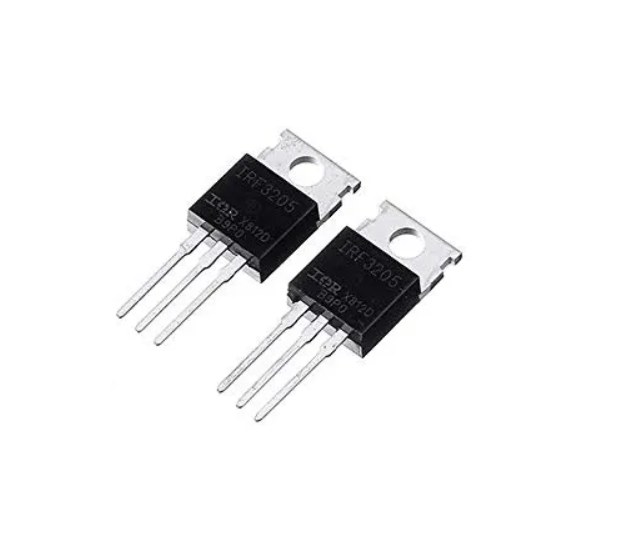

IRF3205PBF MOSFET N-Channel TO220 IR 55V 110A Infineon IRF3205PBF

Product Overview: A through-hole N-channel HEXFET power MOSFET designed for high-power, high-efficiency switching applications such as DC-to-DC converters, motor controllers, audio amplifiers, solar inverters, and battery-powered systems requiring extremely low on-resistance, high current-handling capacity, and ultra-fast switching.

Core Specifications:

Manufacturer: Infineon Technologies (originally International Rectifier)

Package Type: TO-220AB (Through-Hole)

Function: N-Channel Power MOSFET

Drain-Source Voltage (Vds): 55V

Continuous Drain Current (Id): 110A (Silicon Limited) / 75A (Package Limited)

On-State Resistance (Rds(on)): 8.0mΩ (0.008Ω)
