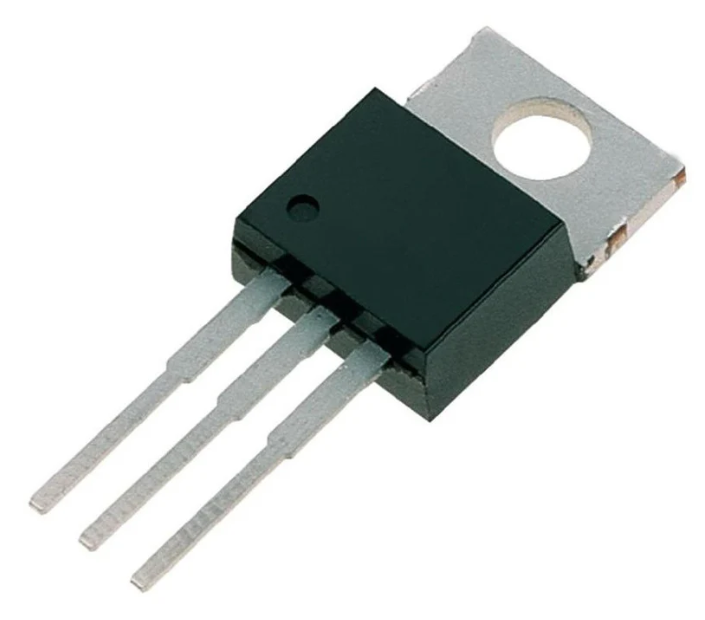

IRF1404 MOSFET N CHANNEL TO-220 40V 202A Infineon IRF1404

Product Overview:

A through-hole N-Channel HEXFET® Power MOSFET engineered for high-efficiency, high-current, and high-speed switching applications. Utilizing advanced process technology, it achieves an ultra-low on-state resistance ($R_{DS(on)}$), which significantly minimizes conduction losses and maximizes power density. It features a high operating temperature rating (up to 175°C), fast switching speeds, and full avalanche ruggedness. This device is highly optimized for demanding high-current, low-voltage applications such as automotive systems, industrial motor drives, high-efficiency DC-DC converters, solar/power inverters, and uninterruptible power supplies (UPS).

Core Specifications:

Manufacturer: Infineon (Formerly International Rectifier - IR)

Package Type: TO-220AB / TO-220

Function: N-Channel Power MOSFET

Maximum Drain-Source Voltage: 40V

Continuous Drain Current: 202A (Silicon limited at 25°C; package limited to 75A)

Specific Variant: IRF1404 / IRF1404PBF
