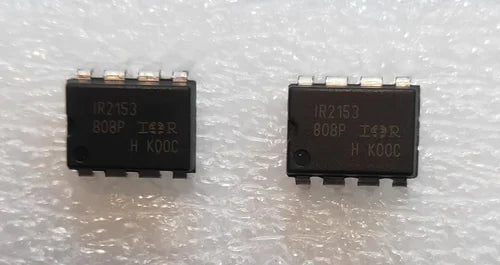

IR2153STRPBF IC IR DRIVER DIP-8 IR2153STRPBF

Product Overview:

The IR2153(D)(S) is a self-oscillating half-bridge gate driver integrated circuit designed for high-voltage, high-speed power applications. It is an improved version of the popular IR2155 and IR2151 driver ICs, incorporating a high-voltage half-bridge gate driver with a front-end oscillator. The device features a 15.6V zener clamp on the $V_{CC}$ pin, true micropower startup, and a shutdown feature on the $C_T$ pin. The "D" suffix version (IR2153D) includes an integrated internal 50ns (typ.) bootstrap diode.

Core Specifications:

• Manufacturer: International Rectifier (Infineon)

• Package Type: 8-lead PDIP and 8-lead SOIC packages
