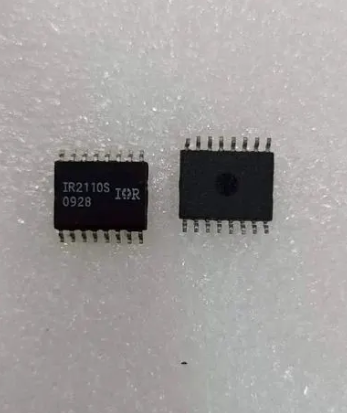

IR2110STRPBF SMD MOSFET IGBT GATE DRIVER SOIC-16-300mil 2110 Infineon IR2110STRPBF

Product Overview

A surface-mount, high-voltage, high-speed power MOSFET and IGBT driver featuring independent high- and low-side referenced output channels. It utilizes proprietary HVIC and latch-immune CMOS technologies to achieve rugged monolithic construction, making it highly effective for motor drives, inverters, and switch-mode power supplies (SMPS).

Note: This component is a high- and low-side gate driver integrated circuit (IC) used to control external MOSFETs or IGBTs, rather than a standalone transistor.

Core Specifications

• Manufacturer: Infineon Technologies (International Rectifier)

• Package Type: SOIC-16 (300 mil Wide Body)

• Function: High and Low Side Gate Driver IC

• Offset Voltage ($V_{OFFSET}$): 500V maximum

• Gate Drive Supply Range ($V_{CC}$ / $V_{BS}$): 10V to 20V

• Peak Output Current ($I_{O+/-}$): +2A (Source) / -2A (Sink)

• Logic Compatibility: 3.3V, 5V, 15V

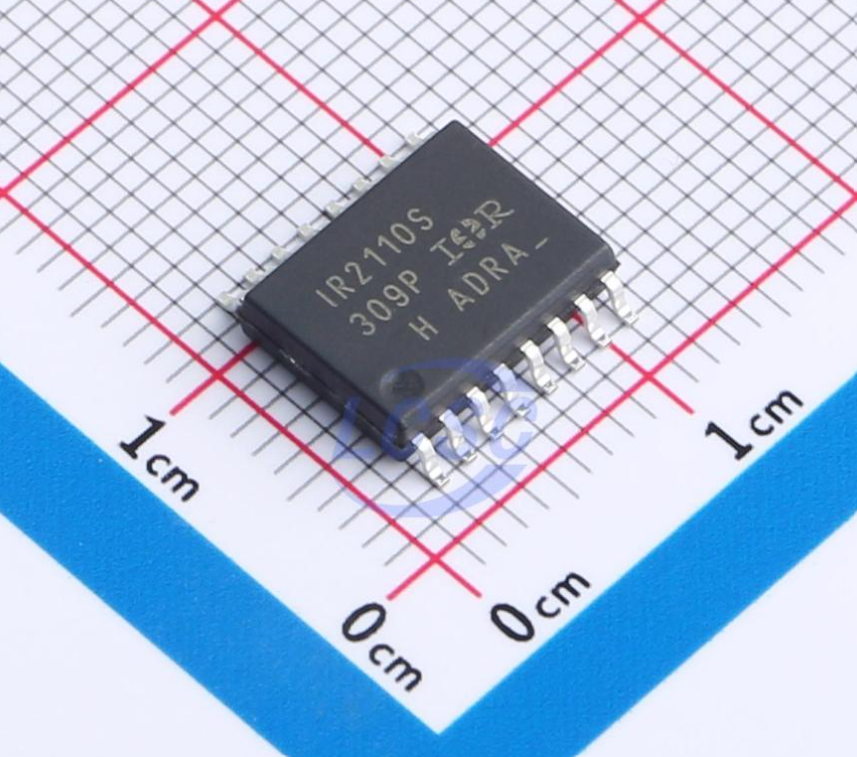

• Marking Code: IR2110S / 2110

• Part Number: IR2110STRPBF
