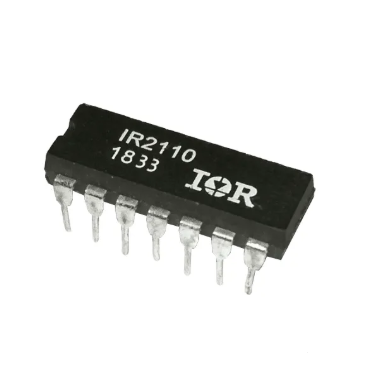

IR2110 MOSFET Infineon IR2110

Product Overview: A high-voltage, high-speed power MOSFET and IGBT driver integrated circuit featuring independent high-side and low-side referenced output channels. Designed with proprietary HVIC and latch-immune CMOS technologies, it provides robust monolithic construction and can drive N-channel power MOSFETs or IGBTs in high-side configurations operating up to 500V. It features matched propagation delays and logic inputs compatible with standard 3.3V, 5V, and 15V CMOS or LSTTL outputs, making it an industry standard for bridge circuits, motor drives, inverters, and switch-mode power supplies (SMPS).

Core Specifications:

Manufacturer: Infineon (Formerly International Rectifier - IR)

Package Type: DIP-14 / SOIC-16

Function: High and Low Side Gate Driver

Maximum Floating Offset Voltage: 500V

Output Peak Current: 2.0A (Source) / 2.0A (Sink)

Logic Compatibility: 3.3V, 5V, and 15V systems

Specific Variant: IR2110
