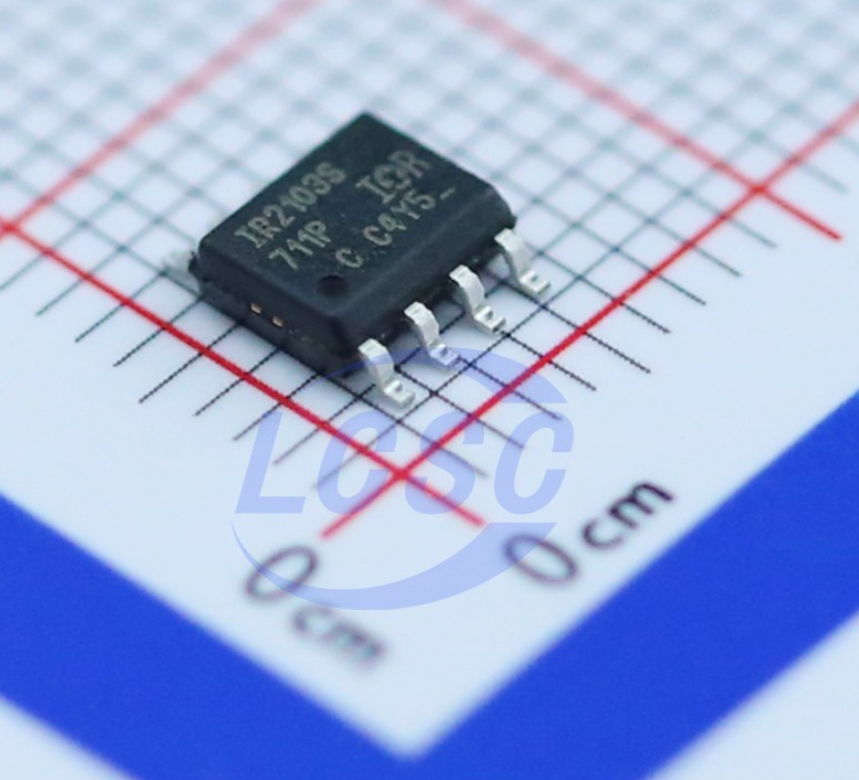

IR2103STRPBF SMD IC Gate Driver SOP8 IR2103STRPBF

Product Overview:

A high-voltage, high-speed power MOSFET and IGBT driver integrated circuit featuring independent high-side and low-side referenced output channels. Designed with proprietary HVIC and latch-immune CMOS technologies, it provides ruggedized, monolithic construction for half-bridge power stage applications.

Core Specifications:

Manufacturer: International Rectifier

Package Type: 8-Lead PDIP, 8-Lead SOIC

Function: High-Voltage Half-Bridge Driver

Voltage Rating: Up to 600V (Floating Channel)

Control Interface: 3.3V, 5V, and 15V logic compatible

Features:

• Floating channel designed for bootstrap operation

• Gate drive supply range: 10V to 20V

• Undervoltage lockout (UVLO) protection

• Cross-conduction prevention logic (internal deadtime set)

• Matched propagation delay for both channels

• Tolerant to negative transient voltage and dV/dt immune

Applications:

• High-voltage power MOSFET and IGBT gate driving

• Half-bridge power converter topologies

• Motor drive systems

• Power supplies and inverters
