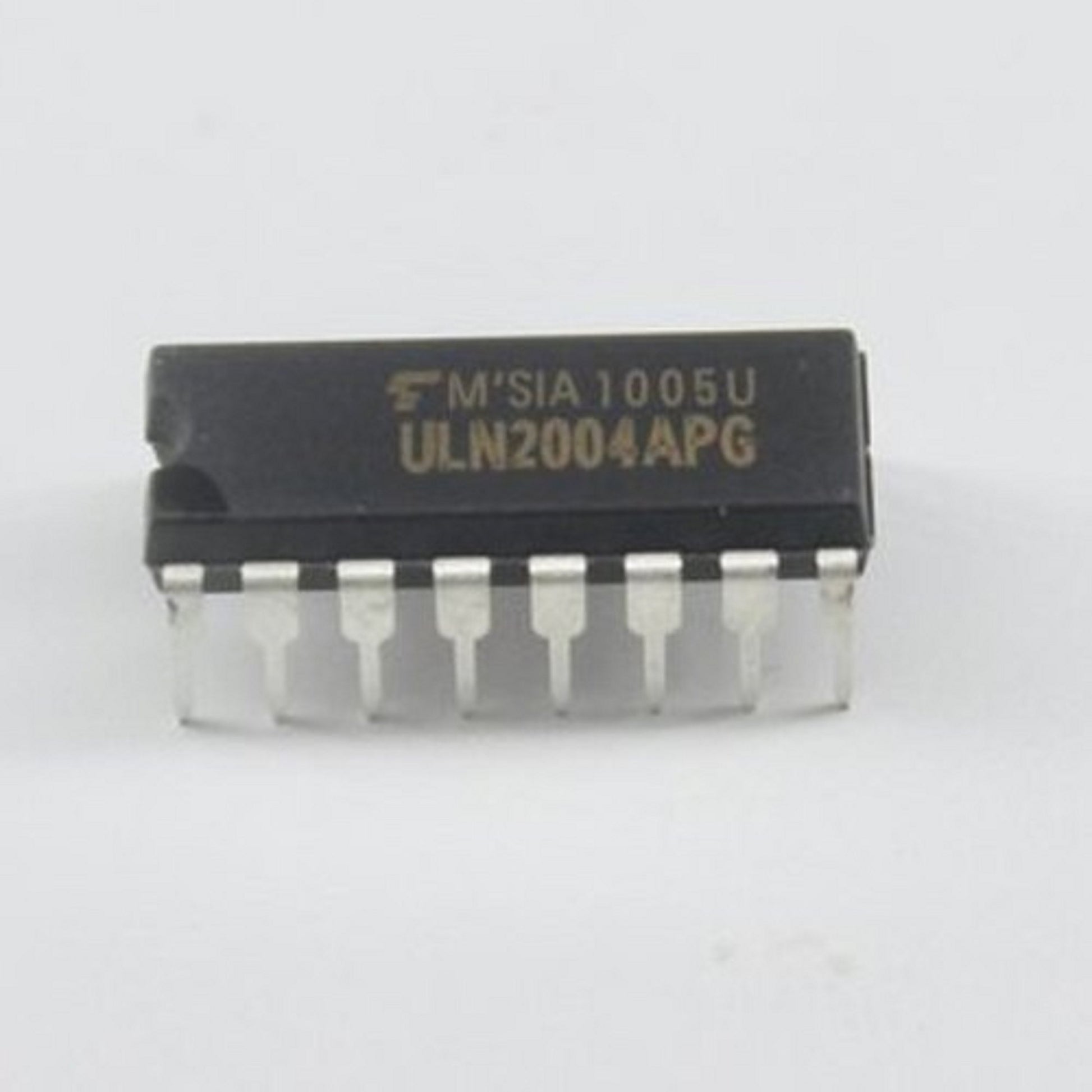

ULN2004 IC IK SEMI DIP-16 ULN2004N 2004 IKSEMI ULN2004N

Product Overview: A 16-pin through-hole integrated circuit containing seven high-voltage, high-current NPN Darlington transistor pairs. It features common-cathode internal clamp diodes, making it ideal for switching inductive loads such as relays, solenoids, and stepper motors directly from 6V to 15V CMOS or PMOS logic systems.

Core Specifications:

Manufacturer: IK SEMI

Package Type: DIP-16 (Dual In-line Package)

Function: 7-Channel Darlington Transistor Array

Maximum Output Voltage: 50V

Maximum Output Current: 500mA (per channel)

Logic Compatibility: 6V to 15V CMOS/PMOS

Specific Variant: ULN2004N
