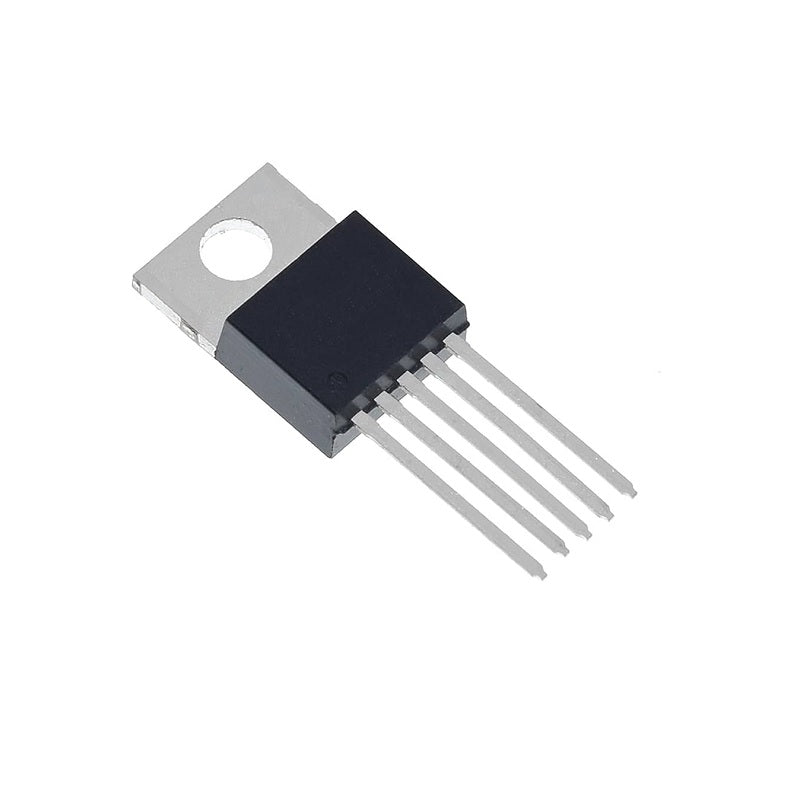

IL2596-5.0KB-P IC TO-220-5 IKSEMI 5V LM2596 IL2596-5.0KB-P

Product Overview

The IL2596 series consists of monolithic integrated circuits designed as high-efficiency step-down (buck) switching voltage regulators. They are capable of driving a 3A load with excellent line and load regulation while requiring only a minimal number of external components, which simplifies board design. The series includes fixed output voltage versions (3.3V, 5V, and 12V) and an adjustable version (1.2V to 37V). These regulators include comprehensive safety features such as internal current limiting, thermal shutdown protection, and a low-power standby mode.

Core Specifications

• Manufacturer: IKSemicon

• Package Type: TO-220-5L, TO-263-5L

• Function: 3A Step-Down (Buck) Switching Voltage Regulator

• Input Voltage: Up to 40V

• Control Interface: Includes a TTL-compatible shutdown pin for power-off control and standby mode selection.
