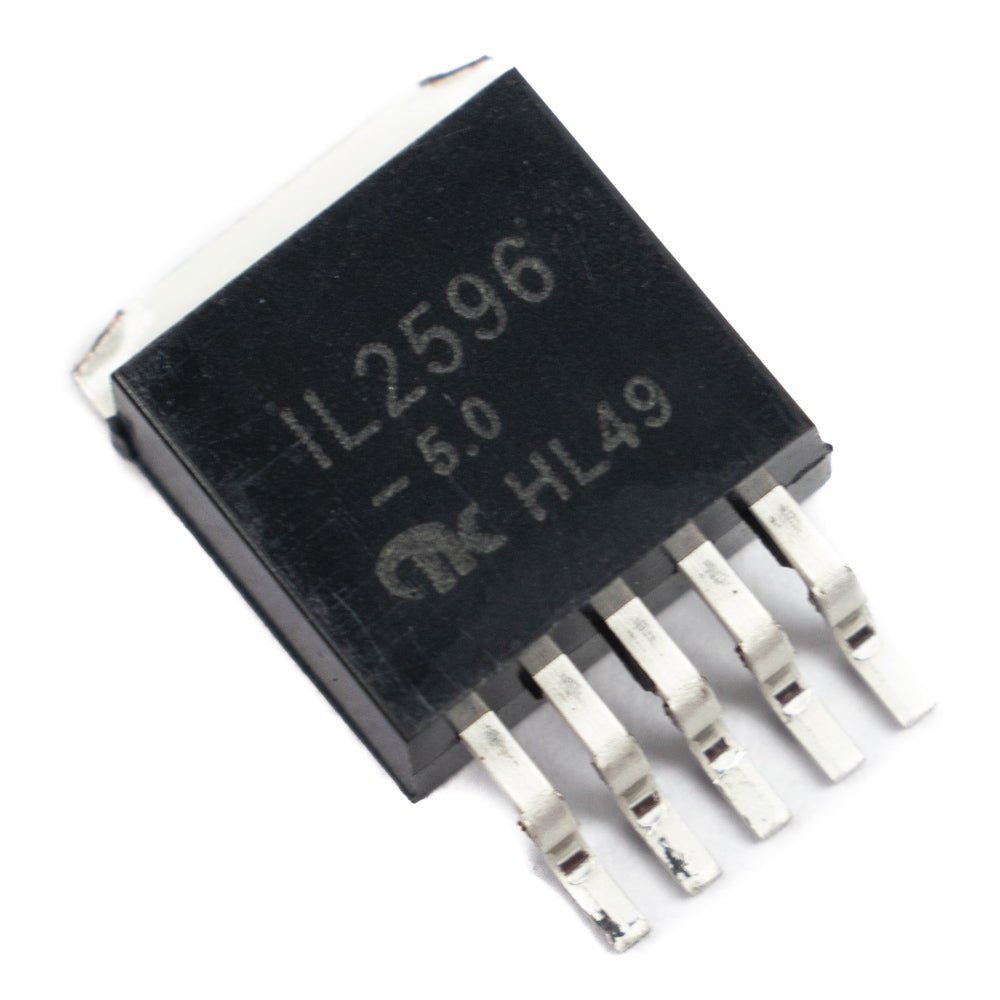

IL2596-5.0D2T-P IC IKSEMI TO263-5 5V REGULATOR LM2596 IL2596-5.0D2T-P

Product Overview

The IL2596-5.0D2T-P is a monolithic integrated circuit designed as a high-efficiency step-down (buck) switching voltage regulator. Factory-configured for a fixed 5.0V output, it is capable of driving a continuous 3A load with excellent line and load regulation. The device simplifies circuit design by requiring a minimal number of external components and includes internal safety features such as a 150kHz fixed-frequency oscillator, cycle-by-cycle current limiting, and thermal shutdown protection.

Core Specifications

• Manufacturer: IKSemicon

• Package Type: TO-263-5L (D2PAK, Surface-Mount Package)

• Function: 3A Fixed-Output Step-Down (Buck) Switching Regulator

• Output Voltage: 5.0V (Fixed)

• Input Voltage: Up to 40V

• Control Interface: Includes a TTL-compatible ON/OFF shutdown pin for power-off control and low-power standby mode selection.
