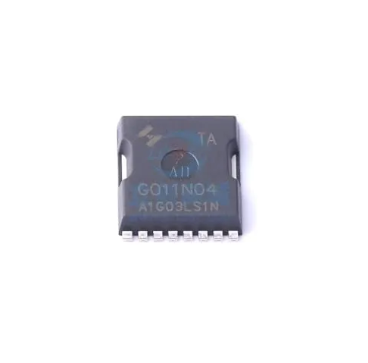

HYG011N04LS1TA SMD MOSFET N-Channel TOLL HUAYI 40V 320A HYG011N04LS1TA

Product Overview

A surface-mount N-Channel power MOSFET designed using advanced split-gate trench technology. It features high current density, an exceptionally low on-resistance ($R_{DS(on)}$), and 100% avalanche testing. It is ideally optimized for high-power switching applications, battery management systems (BMS), and power management systems for inverters where thermal efficiency and high current delivery are crucial.

Core Specifications

• Manufacturer: HUAYI (HuaYi Microelectronics)

• Package Type: TOLL (TO-Leadless)

• Function: SMD MOSFET (N-Channel)

• Voltage Rating: 40V

• Current Rating: 320A

• Power Dissipation: 250W

• Static On-Resistance ($R_{DS(on)}$): * ~0.9 mΩ (typical @ $V_{GS}$ = 10V)

  • ~1.3 mΩ (typical @ $V_{GS}$ = 4.5V)

• Part Number: HYG011N04LS1TA
