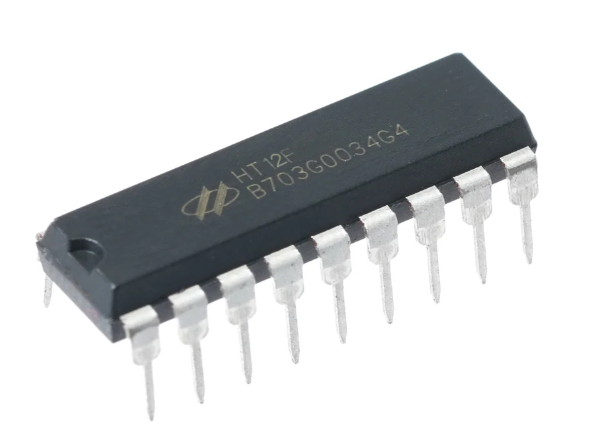

HT12F IC Decoder IC DIP-18 HT 12F

Product Overview: A CMOS-based 2¹² series decoder integrated circuit designed for remote control system applications, capable of decoding 12 bits of address information.

Core Specifications:

• Manufacturer: Holtek Semiconductor

• Component Type: Remote Control Decoder

• Operating Voltage Range: 2.4 V to 12 V

• Decoder Capacity: 12 address bits (0 data bits)

• Oscillator: Built-in RC oscillator (requires only a 5% external resistor)

• State Verification: Received codes are checked 3 times continuously

• Integrated Features: Valid transmission indicator (VT pin)

• Compatibility: Designed to pair with Holtek 2¹² series encoders via RF or infrared mediums

• Operating Temperature Range: -20°C to 75°C

• Common Packages: 18-Pin DIP, 20-Pin SOP
