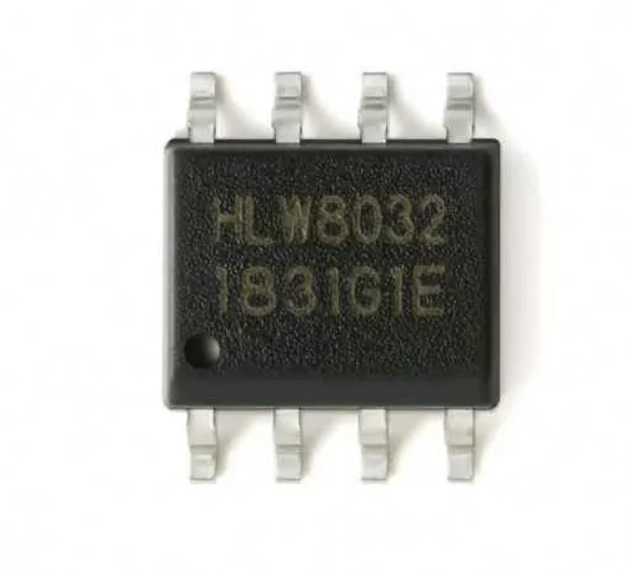

HLW8032 SMD IC Energy Metering SOP8 HLW8032

Product Overview:

A single-phase metering integrated circuit designed for accurate energy measurement, specifically tailored for intelligent household appliances, smart sockets, and power monitoring systems.

Core Specifications:

Manufacturer: HL Technology

Package Type: SOP-8

Function: Single-phase metering IC

Input Channels: Voltage and current channel inputs

Control Interface: UART communication

Features:

• Measures effective values of active power, apparent power, current, and voltage

• Active power measurement accuracy: 0.2% (1000:1 dynamic range)

• Current and voltage measurement accuracy: 0.5% (1000:1 dynamic range)

• Built-in frequency oscillator and voltage reference source

• Integrated power supply monitoring circuit

• UART interface for data communication

Applications:

• Intelligent household appliances

• Metering sockets and Smart WIFI sockets

• Charging piles for electric vehicles (EV)

• PDU (Power Distribution Unit) equipment

• LED and street lamp lighting control
