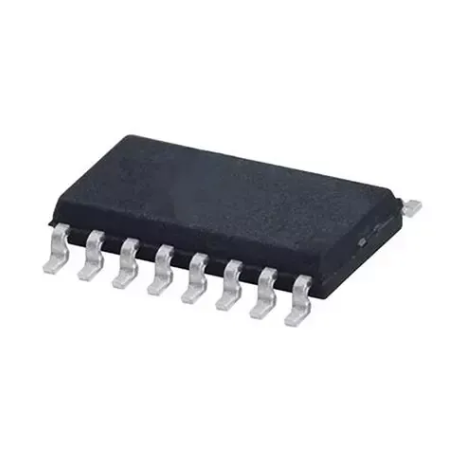

HEF4094BT SMD IC Shift Register SOIC16 4094 HEF4094BT-SOIC-16

Product Overview: An 8-bit serial-in/serial or parallel-out shift register integrated circuit featuring a dedicated 8-bit storage register and 3-state parallel outputs, designed for low-power high-speed serial-to-parallel data conversion, remote control holding registers, and industrial/automotive bus interfacing.

Core Specifications:

Manufacturer: Nexperia

Package Type: SO16 (HEF4094BT) / TSSOP16 (HEF4094BTT)

Function: 8-Stage Shift-and-Store Register

Input Channels: 1 Serial Data Input (D), 1 Clock Input (CP), 1 Strobe Input (STR), 1 Output Enable Input (OE)

Control Interface: Serial Clock / Strobe Digital Interface
