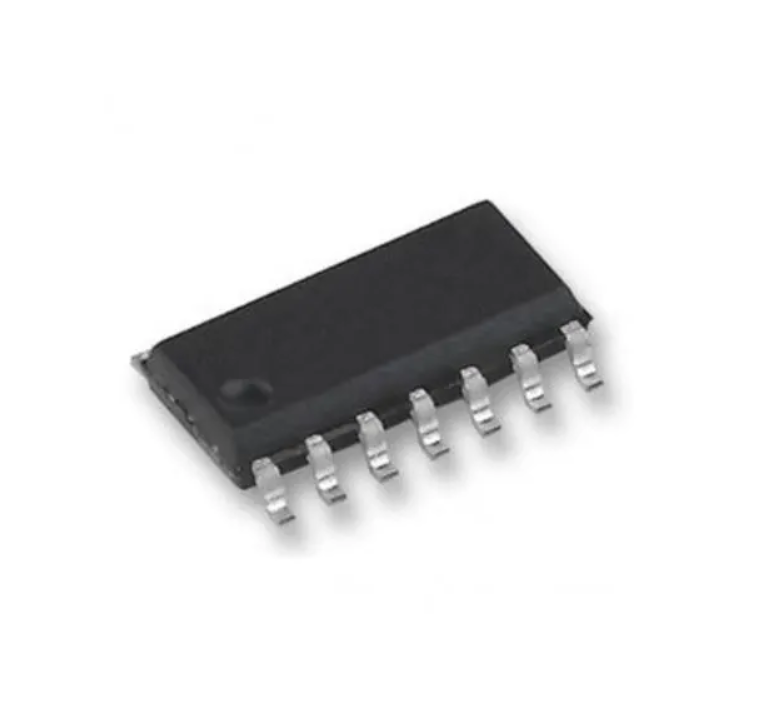

HEF4093BT SMD IC NAND GATE SO14 4093 HEF4093BT,653

Product Overview:

A surface-mount, quad 2-input NAND gate integrated circuit featuring Schmitt-trigger inputs. It is designed for signal conditioning, pulse shaping, and logic applications where input signals may have slow rise or fall times, providing clean, fast-switching digital output signals.

Core Specifications:

Manufacturer: Nexperia

Package Type: SOT108-1 (SO14, 3.9 mm body width)

Function: Quad 2-Input NAND Gate with Schmitt-Trigger Inputs

Input Channels: 4 Independent 2-Input NAND Gates

Control Interface: Direct Logic Input (Schmitt-Trigger)

Features:

• Schmitt-trigger input discrimination for enhanced noise immunity

• Wide supply voltage range: 3.0V to 15.0V

• Fully static operation

• Standardized, symmetrical output characteristics

• Specified operating temperature range: -40°C to +125°C

• Compliant with JEDEC standard JESD 13-B

Applications:

• Wave and pulse shaping circuits

• Astable and monostable multivibrators

• Logic signal inversion and signal conditioning

• Debouncing switches and noisy signal cleanup

• Industrial and consumer electronic timing applications
