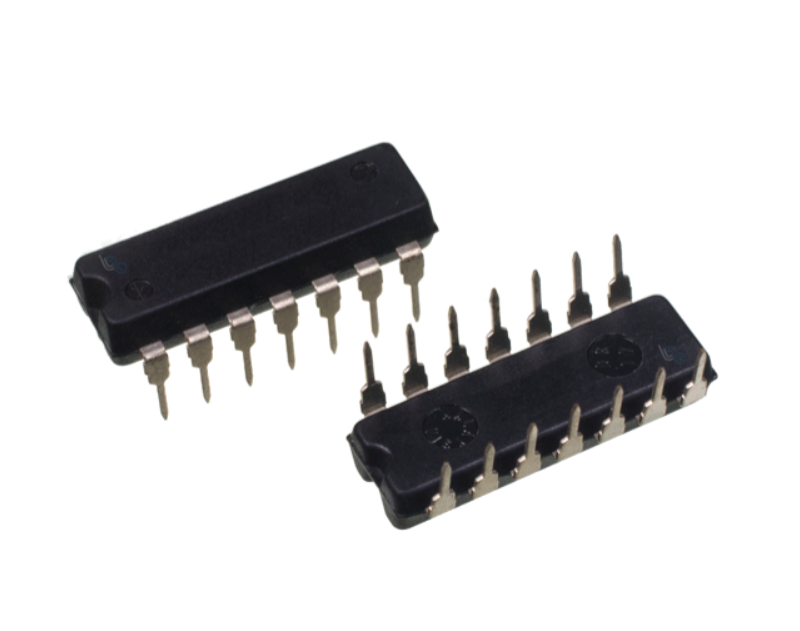

HCF4007UBE / cd4007 IC DIP14 TI NOT GATE CD4007UBE

Product Overview

A highly versatile, foundational CMOS integrated circuit featuring three independent dual complementary pairs of N-channel and P-channel enhancement-mode transistors alongside an integrated inverter stage. Designed for maximum circuit flexibility, it allows direct access to individual transistor terminals, making it an ideal building block for custom logic gates, pulse-shaping networks, linear amplifiers, oscillators, and high-impedance transmission gates. It features the ultra-low power consumption, wide operating voltage range, and high noise immunity characteristic of the classic CD4000 logic series.

Core Specifications

• Manufacturer: Texas Instruments (TI)

• Package Type: PDIP-14 (14-pin Plastic Dual Inline Package)

• Function: CMOS Dual Complementary Pair Plus Inverter Specialty Logic IC (MPN: CD4007UBE / LCSC Part #C1523490)

• Input Voltage: Wide recommended operating supply voltage range from 3V to 18V

• Control Interface: Direct pin-level terminal access (gates, drains, and sources) for custom hardware-defined configurations and discrete transistor-level circuit design.
