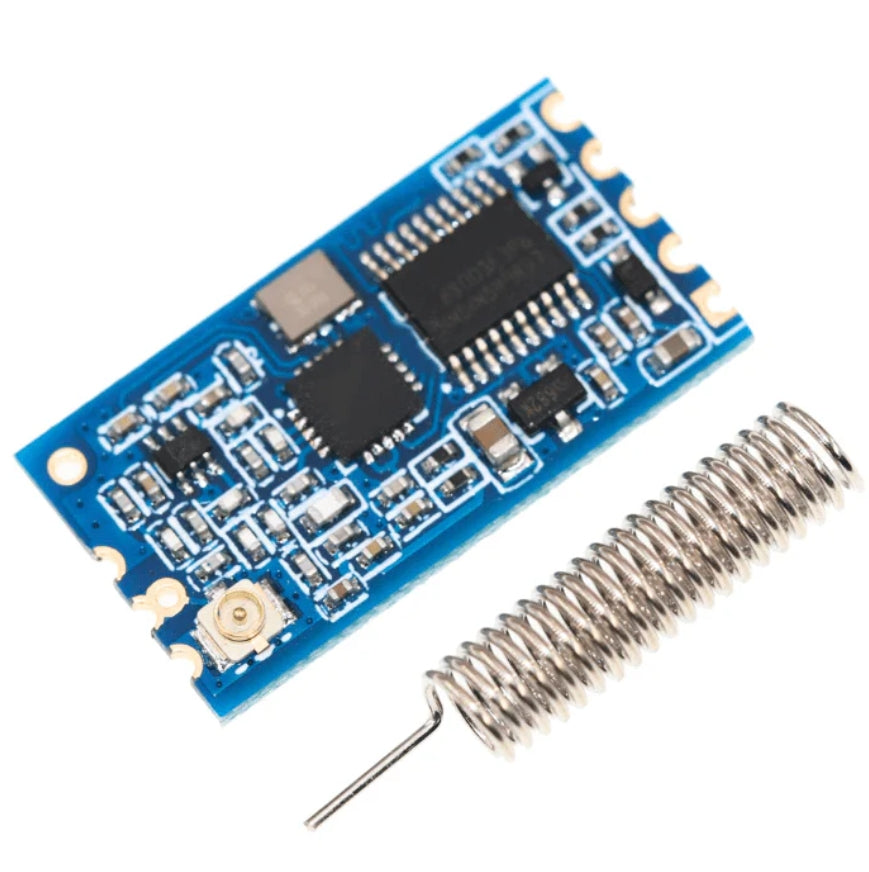

HC-12 Wireless Transceiver Module SI4463 hc12

Features

• IEEE 802.15.4g compliant
• Frequency range = 119–1050 MHz
• Receive sensitivity = –126 dBm
• Serial TTL (RX, TX, GND) interface
• Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
• Max output power +20 dBm
• Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
• Ultra low current powerdown modes 30 nA shutdown, 50 nA standby
• Data rate = 100 bps to 1 Mbps
• Fast wake and hop times
• Highly configurable packet handler
• TX and RX 64 byte FIFOs
• Auto frequency control (AFC)
• Automatic gain control (AGC)
