GBU1010 BRIDGE RECIFIER 1000V 10A GBU 1010 Bridge Rectifier DIODE GBU-1010

Product Overview

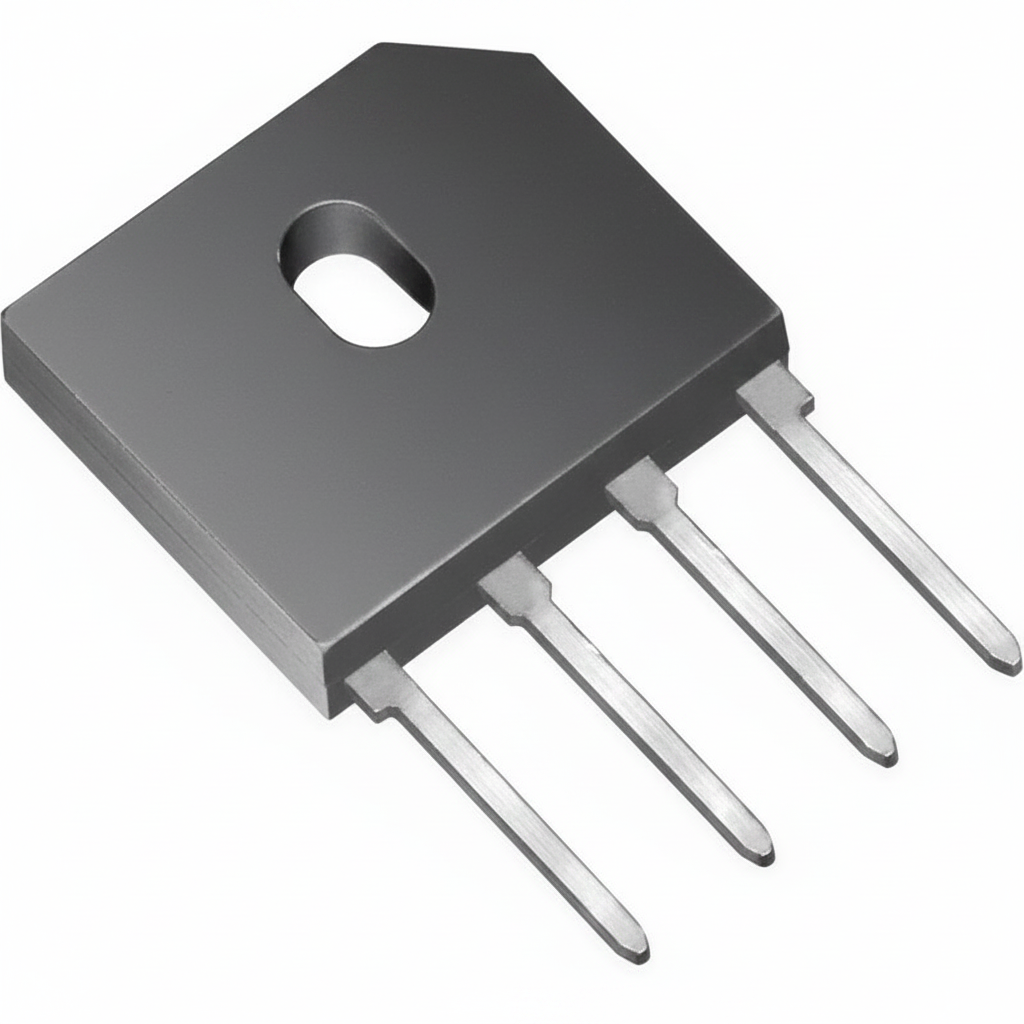

The component featured in the datasheet is the GBU10005-GBU1010 10A Standard Recovery Bridge Rectifier by Diodes Incorporated. It operates on the principle of full-wave power rectification, utilizing glass passivated semiconductor dies arranged in a bridge network to convert alternating current (AC) into stable direct current (DC). The inline GBU plastic package features four vertical through-hole terminals, molded polarity markings directly on the body, and a central mounting slot for a #6 screw to easily secure an external heatsink. It is highly popular in DIY electronics, industrial power units, and consumer appliance design for building robust AC-to-DC power converter circuits, safeguarding hardware configurations, and managing high-surge input filtration stages.
