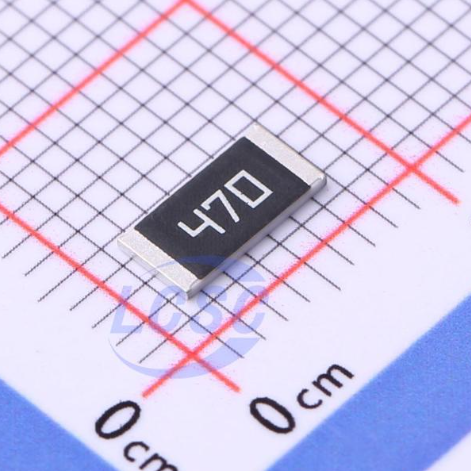

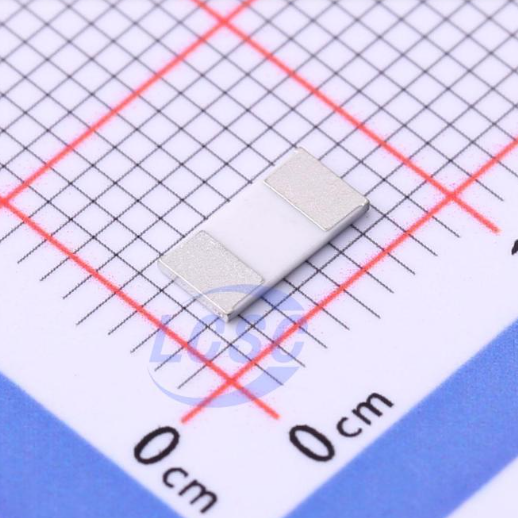

47 Ohm 2W 2512 SMD Resistor FRP2512J470 TS 200V 47E 47R 470 ±5% FOJAN

Product Features:

• High-power thick film chip resistor with compact size and lightweight construction
• Resistance range: 1Ω–10MΩ with ±1%, ±2%, and ±5% tolerance options
• Rated power up to 2W, depending on package size
• Maximum working voltage up to 200V for larger package sizes
• Operating temperature range: -55°C to +155°C with stable electrical performance
• Suitable for power supplies, DC-DC converters, chargers, voltage regulation, automotive and portable devices
• RoHS compliant and halogen-free

Manufacturer: FOJAN
Manufacturer Part Number: FRP2512J470
Package:  2512
Marking Code: 3-digit / 4-digit, depending on tolerance and package
Mounting Type: Surface Mount (SMD)
