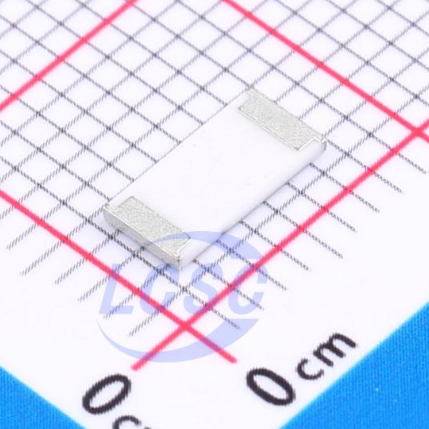

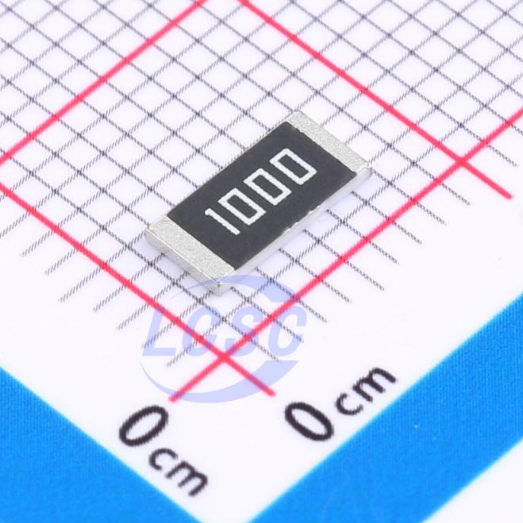

100 Ohm 2W 2512 SMD Resistor FRP2512F1000TS ±1% 200V FOJAN

Product Features:

• High-power thick film chip resistor designed for reliable power handling
• Resistance range: 1Ω–10MΩ with ±1%, ±2%, and ±5% tolerance options
• Rated power up to 2W depending on package size
• Maximum working voltage up to 200V
• Operating temperature range: -55°C to +155°C
• Suitable for power supplies, DC-DC converters, chargers, and automotive applications
• RoHS compliant and halogen-free

Manufacturer: FOJAN
Manufacturer Part Number: FRP2512F1000TS
Package: 2512
Marking Code: 3-digit / 4-digit
Mounting Type: Surface Mount (SMD)
