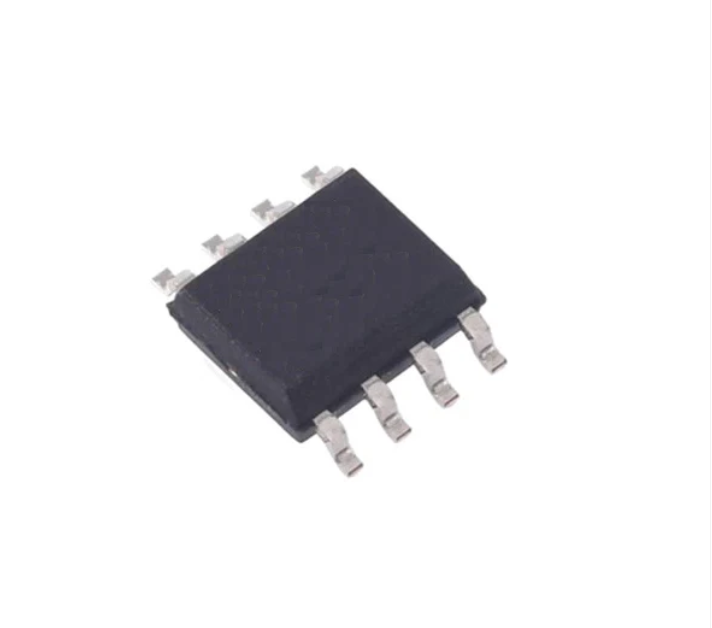

FD2606S SMD MOSFET FORTIOR SOP8 Gate Driver Fortior Tech FD2606S

Product Overview

A surface-mount, high-voltage, and high-speed half-bridge gate driver integrated circuit (IC) designed to control N-channel power MOSFETs and IGBTs. It is commonly used in motor control circuits, DC-DC converters, and inverter applications where robust high-side and low-side switching control is required.

Note: Despite generic online listing titles that include the term "MOSFET," this component is functionally a Half-Bridge Gate Driver IC rather than a standalone transistor.

Core Specifications

• Manufacturer: Fortior Technology (Fortior Tech)

• Package Type: SOP-8

• Function: SMD Half-Bridge Gate Driver IC

• High-Side Floating Voltage (Bootstrap Offset): Up to 600V

• Supply Voltage Range ($V_{CC}$ / $V_{BS}$): 10V to 20V

• Input Logic Compatibility: 3.3V / 5V (TTL/CMOS compatible)

• Built-in Dead Time: Typical 470ns to 650ns

• Key Features: Under-Voltage Lockout (UVLO), Cross-Conduction (Shoot-Through) Prevention Logic, High & Low Side Channel Matching

• Part Number: FD2606S
