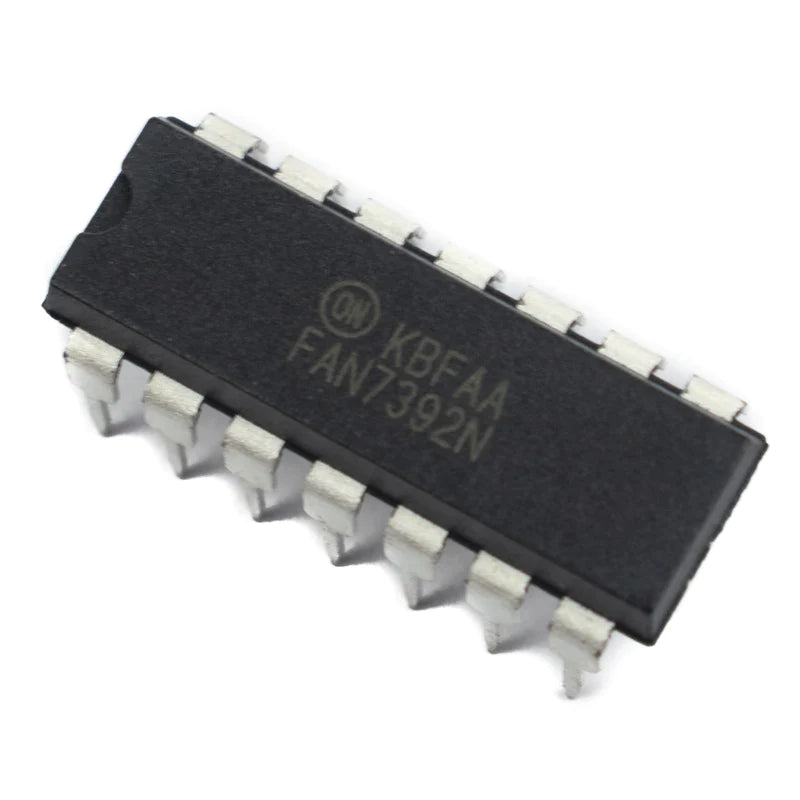

FAN7392 IC Gate driver ONSEMI DIP-14 FAN7392

Product Overview

The FAN7392, manufactured by Fairchild Semiconductor (now part of onsemi), is a monolithic high- and low-side gate drive IC designed to drive high-speed MOSFETs and IGBTs. It is capable of operating with a floating channel for bootstrap operation up to +600V, making it highly suitable for high-voltage power applications. It features a buffered output stage with all-NMOS transistors to ensure high pulse current driving capability while minimizing cross-conduction.

Core Specifications

• Manufacturer: Fairchild Semiconductor

• Function: High-Current, High- and Low-Side Gate-Drive IC
