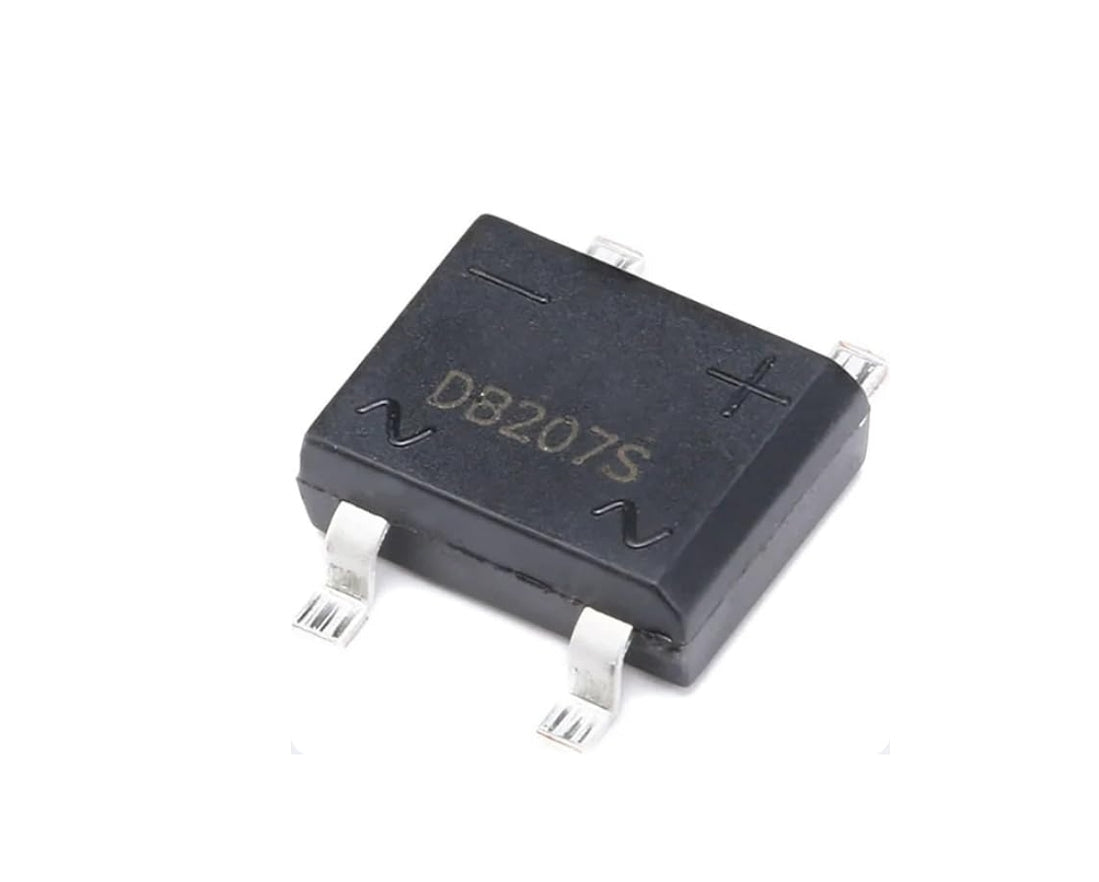

DB207S Diode SMD HOTTECH 1000V Single Phase Bridge Rectifier Diode DB207S

The four-line overview for the Guangdong Hottech Industrial Co., Ltd. (Hottech) version is:

The DB207S is a 1000V, 2A silicon single-phase bridge rectifier diode manufactured by Guangdong Hottech Industrial Co., Ltd. (Hottech) for efficient AC-to-DC power conversion and general-purpose full-wave rectification. Housed in a compact surface-mount DBS molded plastic package, this discrete component integrates four glass-passivated rectifier diodes to minimize power dissipation and optimize board space. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 2A while exhibiting a forward voltage drop of 1.1V per element. Engineered with a high non-repetitive peak forward surge current capability of 60A for robust transient overload protection, this device delivers reliable electrical performance across a wide operating junction temperature range from minus 55 to plus 150 degrees Celsius
