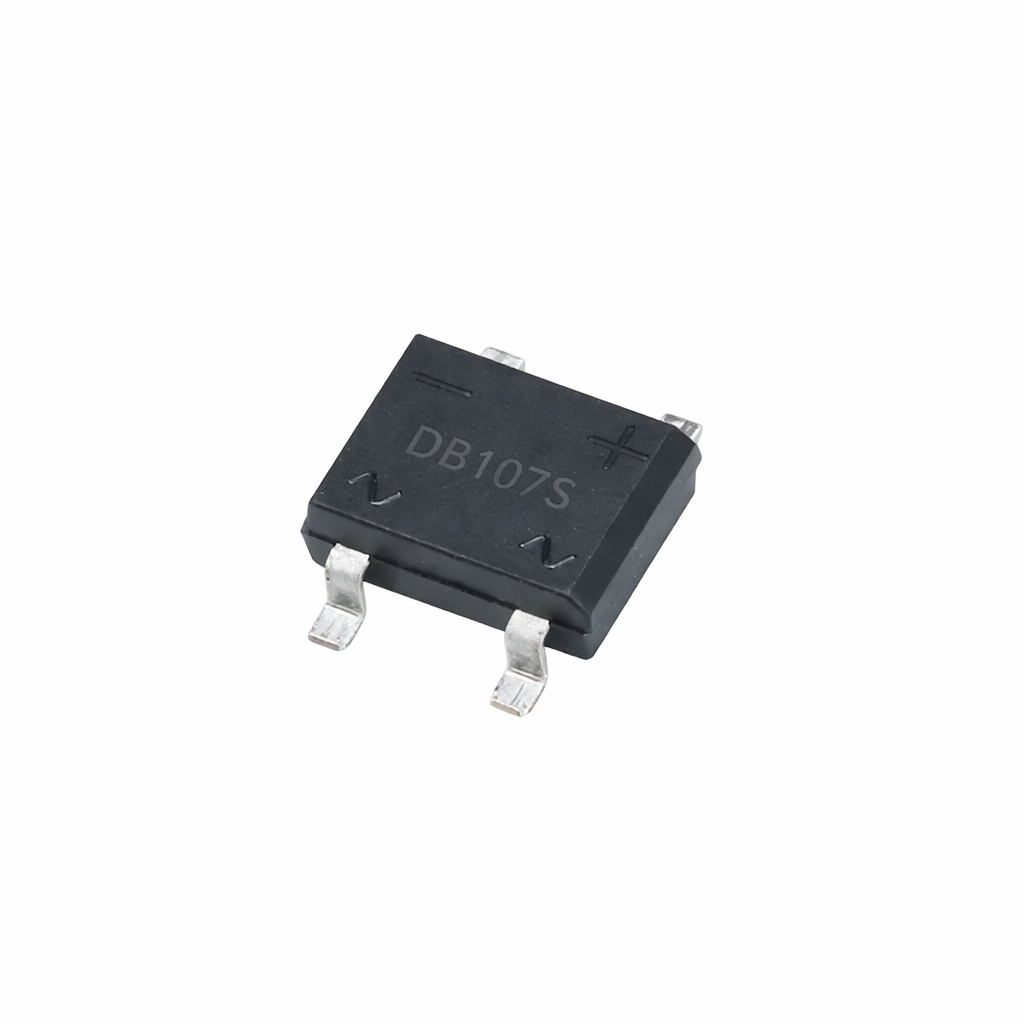

DB107S Diode SMD 1000V 1A Bridge Rectifier HORNBY/SEP DB-107S

The DB107S is a 1000V, 1A silicon single-phase bridge rectifier diode manufactured by Nantong Hornby Electronic Co., Ltd. (Hornby Electronics) for efficient AC-to-DC power conversion and general-purpose full-wave rectification. Housed in a compact surface-mount DBS molded plastic package, this discrete component integrates four glass-passivated rectifier diodes to minimize power dissipation and optimize board space. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 1A while exhibiting a forward voltage drop of 1.1V per element. Engineered with a high non-repetitive peak forward surge current capability for robust transient overload protection, this device delivers reliable electrical performance across a wide operating junction temperature range from minus 55 to plus 150 degrees Celsius
