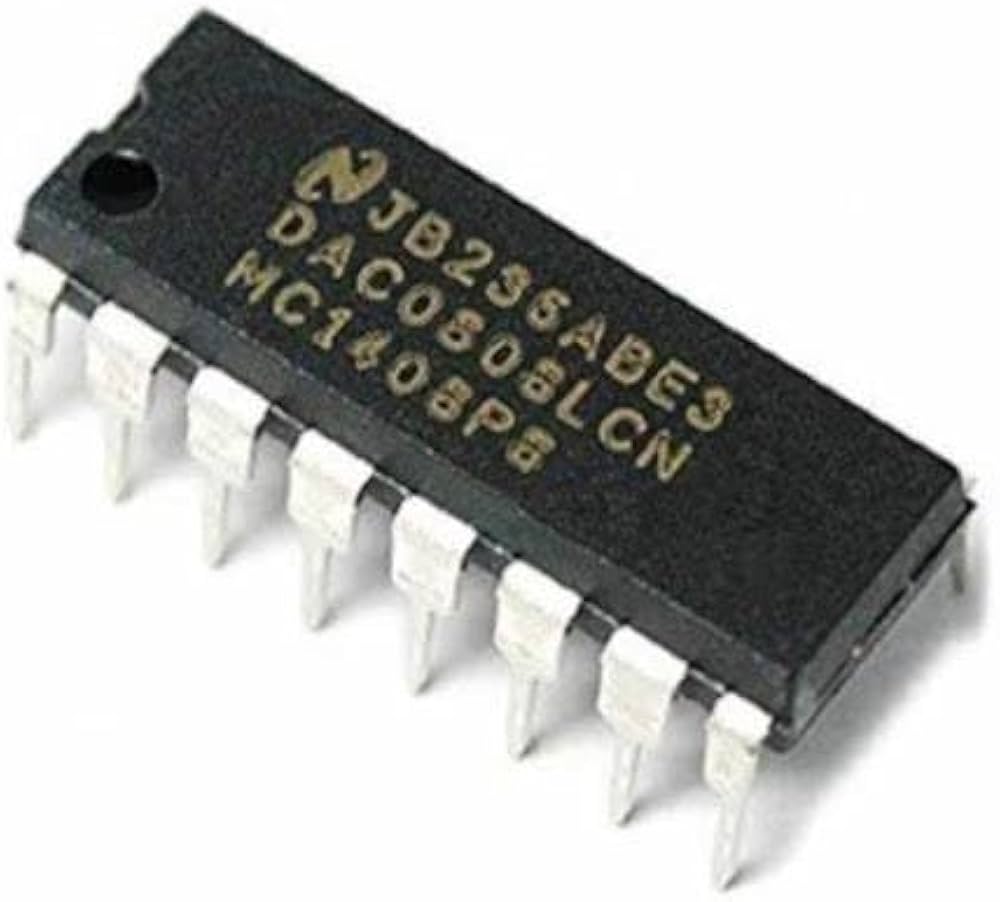

DAC0808 IC DAC 8 Bit DIP-16 DAC0808

Product Overview

The DAC0808 is an 8-bit monolithic digital-to-analog converter (DAC) that features a fast full-scale output current settling time of 150 ns while consuming only 33 mW with ±5V supplies. It delivers a high relative accuracy with a maximum error of ±0.19% to guarantee 8-bit monotonicity and linearity without requiring reference current trimming for most applications. Additionally, the device interfaces directly with popular TTL, DTL, or CMOS logic levels and serves as a direct replacement for the MC1508/MC1408.

Core Specifications

• Manufacturer: Texas Instruments / National Semiconductor

• Function: 8-Bit Digital-to-Analog Converter (DAC)
