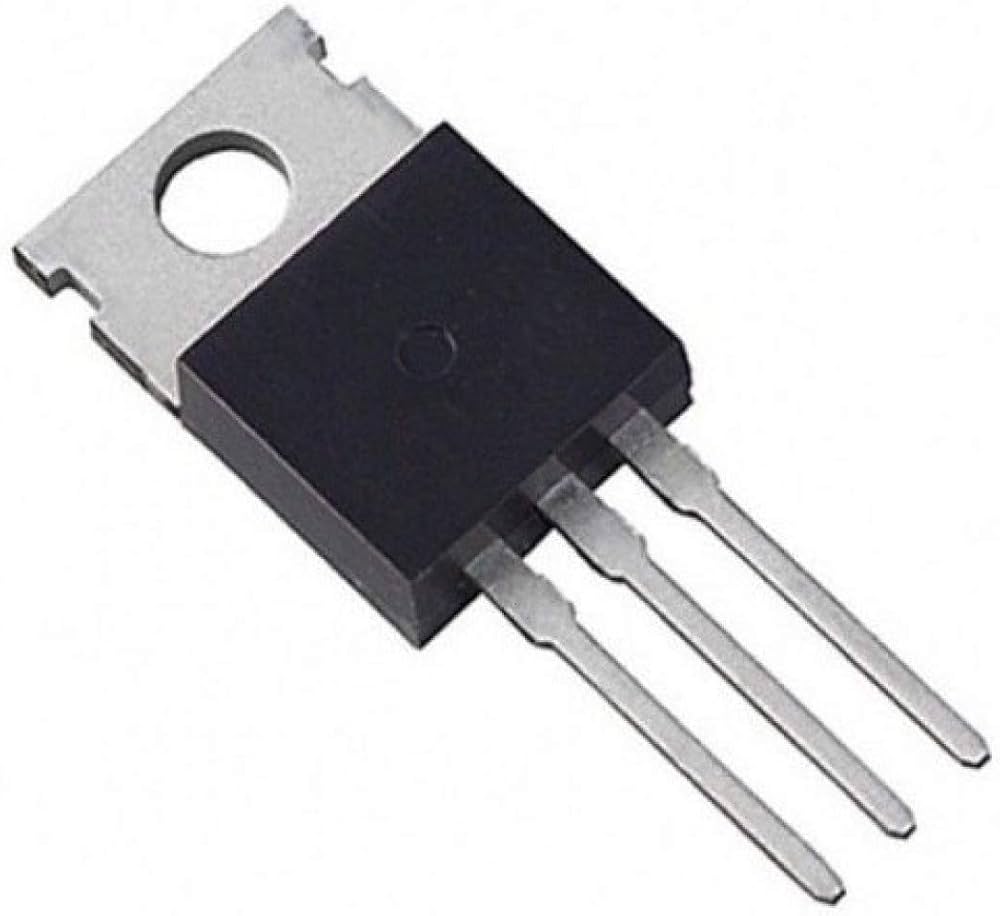

D1351 Power Transistor NPN Transistor JMnic D1351

Product Overview

The D1351 is a high-voltage NPN silicon power transistor designed for efficient switching in power management and deflection circuits. Featuring high breakdown voltage and reliable current handling capabilities, it is commonly utilized in television horizontal deflection output stages, high-voltage power supplies, and general-purpose switching applications. Its robust design ensures stability in demanding environments where inductive spikes and high-voltage stress are present.

Core Specifications

• Manufacturer: JMnic

• Package Type: TO-3P (Through-Hole)

• Component Type: NPN Silicon Power Transistor

• Collector-Emitter Voltage ($V_{CEO}$): 1500V

• Collector-Base Voltage ($V_{CBO}$): 1500V

• Continuous Collector Current ($I_C$): 6A

• Peak Collector Current ($I_{CP}$): 12A

• Power Dissipation ($P_{tot}$): 50W (at $T_C = 25^\circ C$)

• Marking Code: D1351

• Part Number: 2SD1351 / D1351
