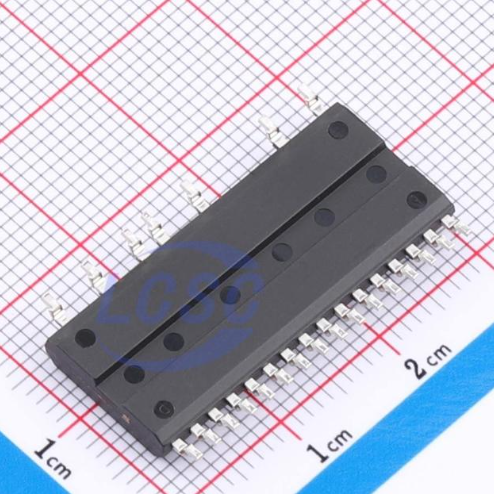

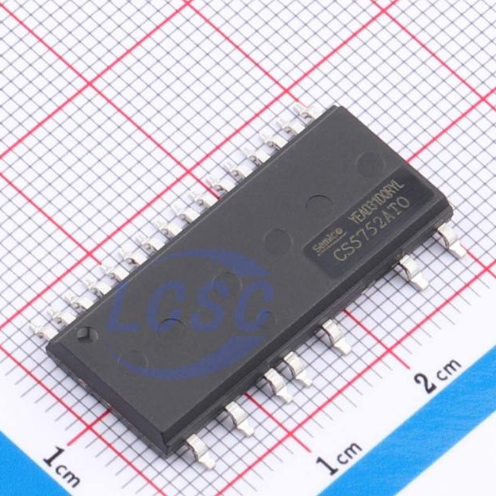

CS5752ATO Power Driver Module SOP-23H CRMICRO

Product Features:

• Three-phase brushless DC motor driver IPM
• Built-in 6 fast-recovery MOSFETs and 3 HVIC gate drivers
• P-N input voltage: 300–400V recommended
• Continuous MOSFET current: 2A at 25°C
• Peak current: 2.5A
• Built-in undervoltage protection and bootstrap diodes
• Temperature sensing output and 1500Vrms isolation

Manufacturer: China Resources Microelectronics (Wuxi) Co., Ltd.
Manufacturer Part Number: CS5752AT
Package: DIP-23H / SOP-23H
Marking Code: CS5752AT
Mounting Type: Through Hole / Surface Mount (SMD)
