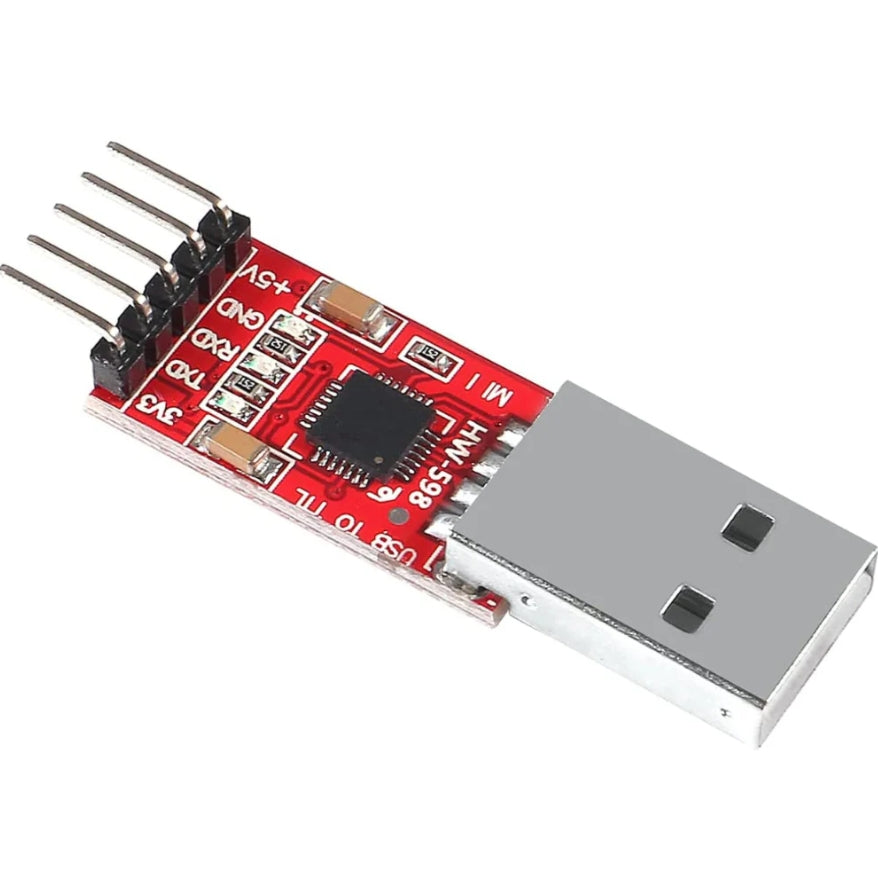

CP2102 Module USB to TTL Serial UART CP2102

Product Overview

The module described in the provided document is a USB to TTL CP2102 Converter Module. It serves as a USB-to-serial bridge that converts standard USB signals into TTL (Transistor-Transistor Logic) level serial signals. This enables direct serial communication (UART) between a computer or USB-enabled host and microcontrollers or embedded systems that lack native USB support.

Core Specifications

• Chipset: CP2102 USB-to-UART Bridge Controller (Silicon Labs)

• USB Interface: USB 2.0 Full-Speed (12 Mbps)

• Operating Voltage: 3.3V or 5V (Selectable via jumper configuration)

• Data Transfer Rate: 300 bps to 1 Mbps

• Data Format: 8 data bits, 1 stop bit, No parity (Default)

• Operating Current: 40mA (Typical), 60mA (Maximum)

• Operating Temperature: -40°C to +85°C

• Logic Levels: TTL High (2V to 5V), TTL Low (0V to 0.8V)
