CL100 Transistor CDIL TRANSISTOR CL100

Product Overview

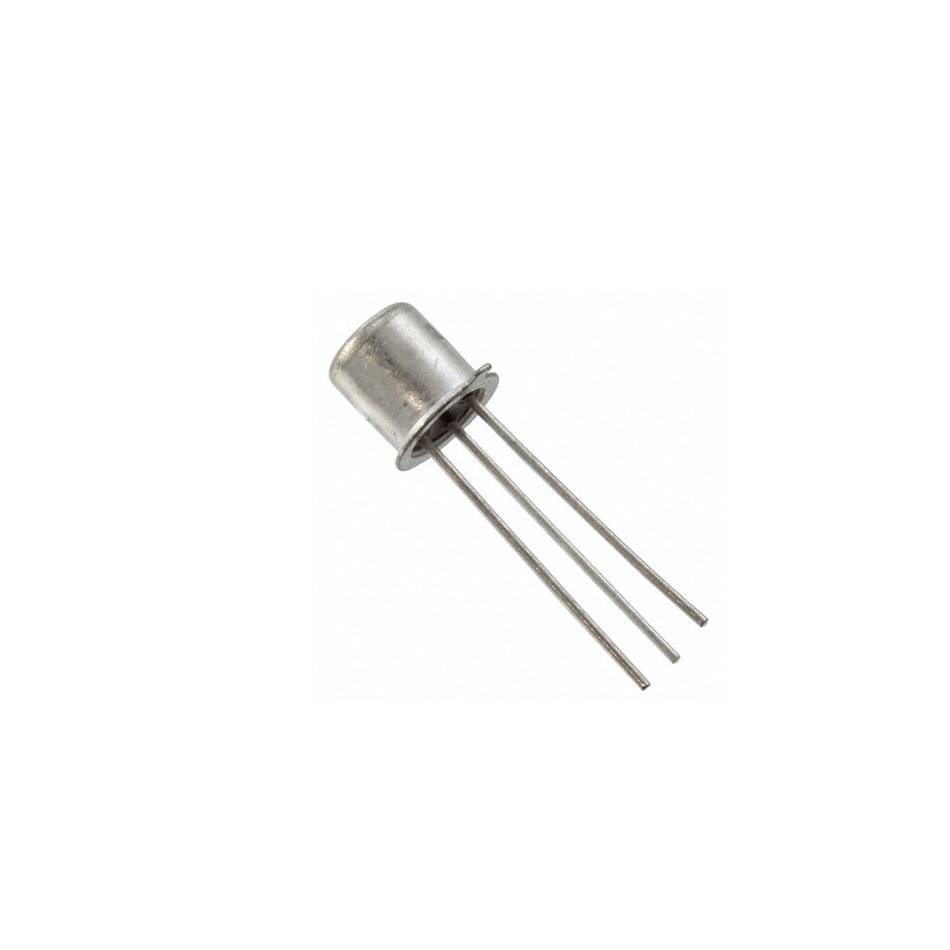

The CL100 is a general-purpose NPN silicon bipolar junction transistor (BJT) housed in a metal TO-5 package. It is designed for medium-power switching and amplification applications. Because of its sturdy metal construction, it offers better thermal dissipation compared to standard plastic-packaged transistors like the TO-92 series, making it a reliable choice for circuits that require moderate power handling in industrial or laboratory environments.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-5 (Metal Can)

• Component Type: NPN Silicon Power Transistor

• Collector-Emitter Voltage ($V_{CEO}$): 50V

• Collector-Base Voltage ($V_{CBO}$): 60V

• Emitter-Base Voltage ($V_{EBO}$): 5V

• Continuous Collector Current ($I_C$): 800mA

• Power Dissipation ($P_{tot}$): 800mW (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 40 to 200 (Typically measured at $I_C = 150mA, V_{CE} = 10V$)

• Transition Frequency ($f_T$): 50 MHz (Minimum)

• Marking Code: CL100

• Part Number: CL100
